The MST01 is a next-generation high-accuracy wireless temperature and humidity sensor built for reliable monitoring in diverse environments. Powered by the advanced nRF54L15 chipset, it delivers improved performance and stability while using LoRaWAN technology for secure, long-range communication. The MST01 is available in multiple probe options, including long-probe versions rated up to IP67, as well as models with an integrated LCD display for real-time readings. With a wide measurement range of -45°C to 125°C and support for up to 100,000 data records, it enables detailed historical analysis. Configurable reporting intervals, easy remote setup, and ultra-long battery life make it ideal for logistics, healthcare, warehouses, and industrial applications.
- LoRaWAN Class A Protocol
- nRF54L15 High-Performance Chip
- Multiple Probe Options
- -45°C to 125°C Range
- Optional LCD Display
- 100,000 Data Logs
- IP67 Rated (Long Probe Version)
- 10-Year Battery Life
LoRaWAN-Based
LoRaWAN excels at transmitting data across extensive distances, utilizing minimal power, and linking numerous devices efficiently.
Long Range Connectivity: Communication ranges up to 15 km away in unobstructed open areas or up to 5 km away in urban areas.
Ultra-Low Power Consumption: Since data transmission and reception require less than 50 mA of current, power consumption is low, providing up to 10 years of battery life.
Strong Penetration Capability: Penetrate deep into indoor environments, ensuring reliable communication and data transmission even through walls and obstacles.
Sensitive and Accurate
MST01 is a LoRaWAN-based wireless sensor for precise temperature and humidity monitoring. With its accurate sensor, MST01 can be used in the operating temperature range -30°C to 70°C, relative humidity levels from 0% to 100%, and high resolution: 0.01°C and 0.01% relative humidity.

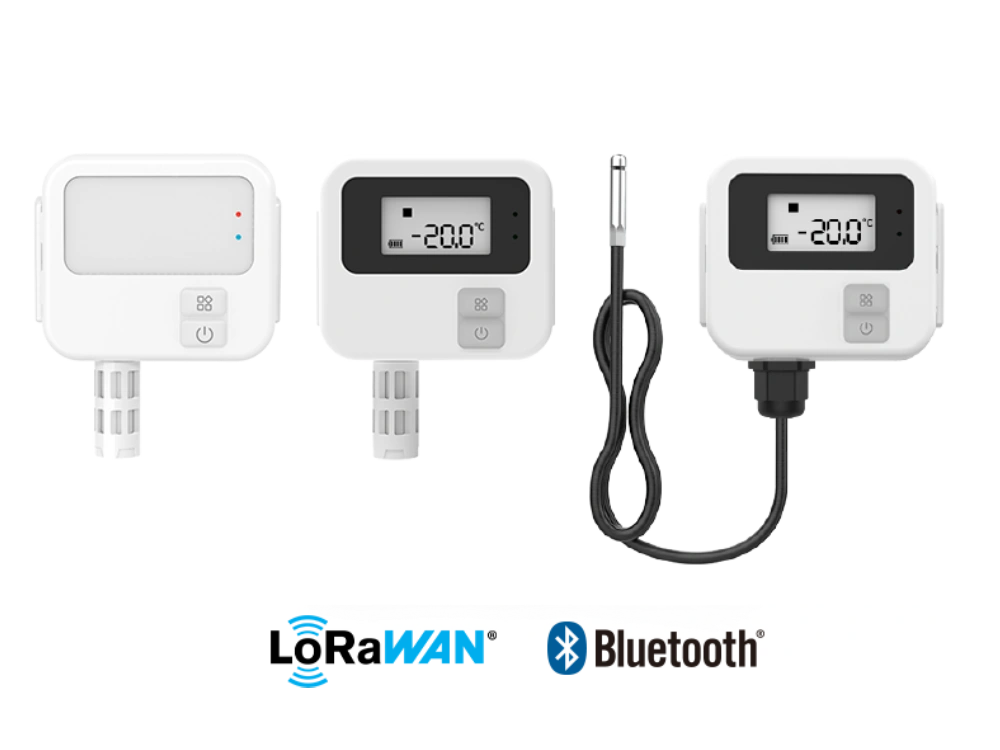

One Design, Multiple Choices
MST01 LoRaWAN is designed to adapt to real-world deployment needs, offering flexible versions with long or short probes and optional LCD display for real-time readings . The IP67-rated long probe supports extreme temperatures from -45°C to 125°C, making it ideal for demanding industrial applications.

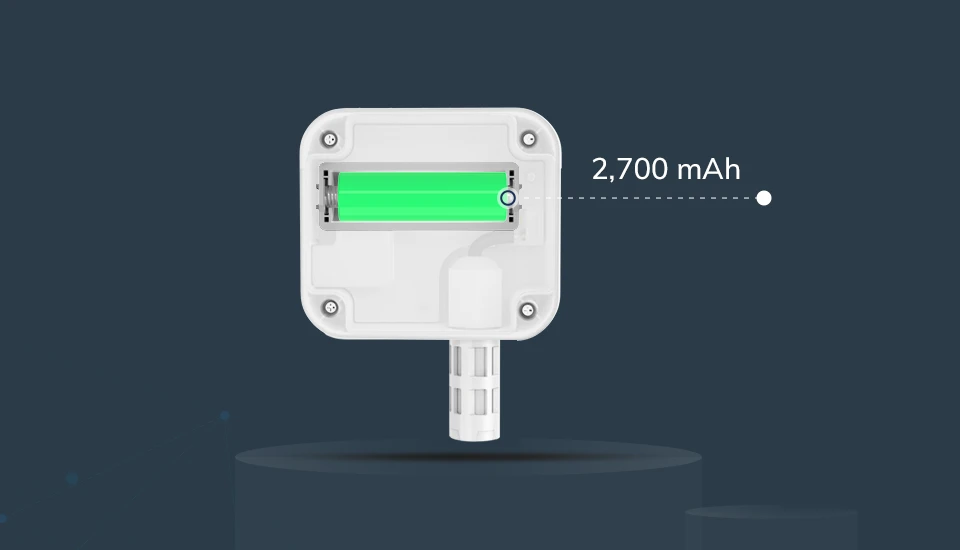

Long-Lasting Battery Life
Built on the ultra-low-power nRF54L15 chipset with a 2,700mAh lithium battery, the MST01 supports long-term, low-maintenance operation. Battery life varies by configuration, with non-display versions enabling up to 10 years of ultra-long deployment, and display-equipped models offering added interaction.

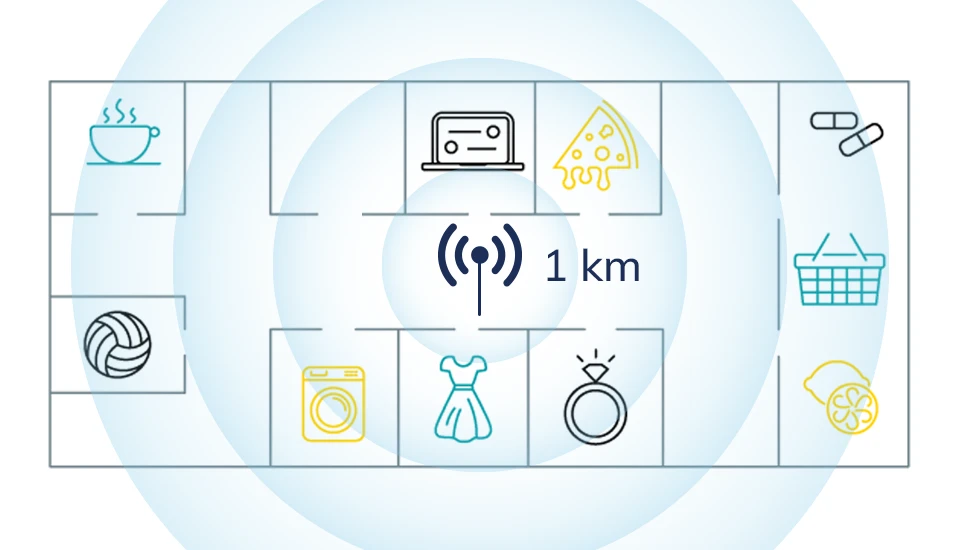

Long-Range Communication
Capable of supporting communication distances of up to 1 km, the MST01 ensures reliable data transmission over expansive areas, ideal for large-scale remote monitoring environments.
Optional Reporting Modes
Periodic Data Reporting
MST01 regularly transmits temperature and humidity data at user-configured intervals, while securely storing up to 100,000 records locally to ensure data continuity even during network interruptions.
Over-Temperature Alerts
MST01 LoRaWAN® temperature & humidity sensor provides instant notifications when preset temperature thresholds are exceeded, enabling swift response to potential risks.
Flexible Remote Configuration
From reporting intervals to threshold settings, MST01 can be configured remotely through the MinewLink App or any standard LoRaWAN platform. Setup is simple and efficient, bringing flexible, centralized control across deployments.
Easy Assembly, Easy installation.

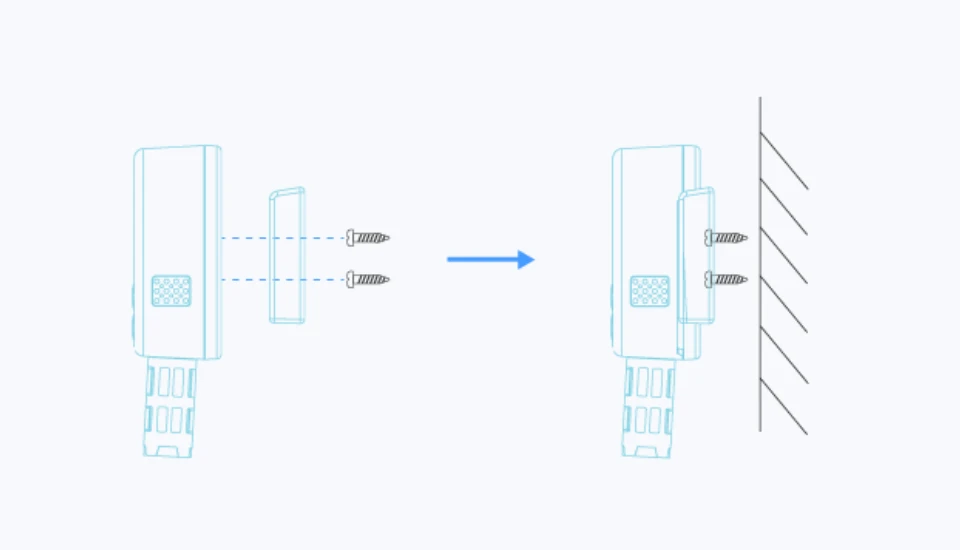

Wall Mounting with Bracket Screw

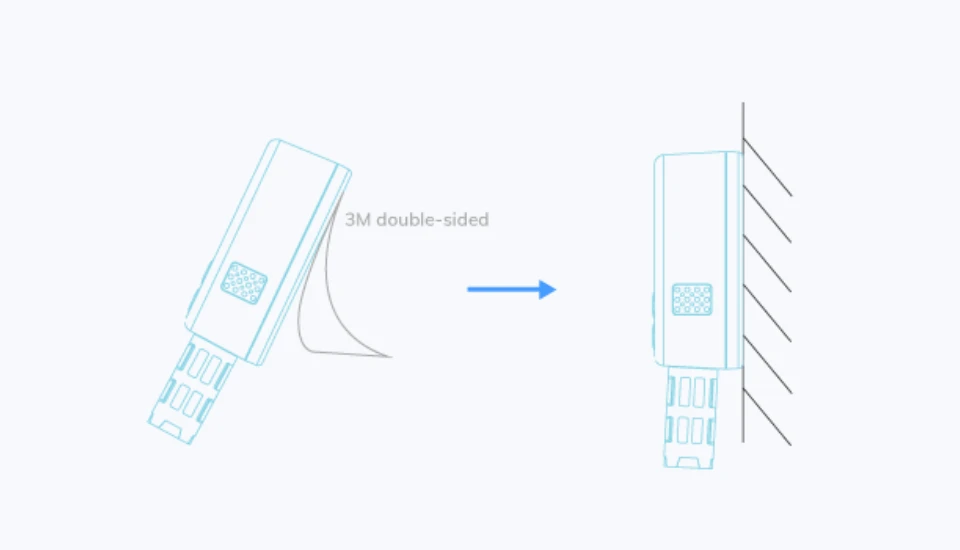

Double-Sided Tape
Versatile Applications
Smart Warehouse
Smart Home
Smart Healthcare
Logistics and Transportation Management
MST01 Series Comparison Table – Key Specifications Overview
 |
 |
 |
 |
 |
 |
 |
|
| Version | MST01-01 | MST01-02 | MST01-03 | MST01-04 | MST01-09 | MST01-10 | MST01 LoRaWAN |
| Features | Breathable Short Temp & Humidity Probe | PE Protective Cover, Dustproof and Antifogging, Short Temp & Humidity Probe | PE Protective Cover, Dustproof and Antifogging, Long Temp & Humidity Probe | Stainless Steel Long Temp & Humidity Probe | Pt100 Sensor, Ultra-low Temperature Detection, Class A Accuracy | Food-grade Probe, Class A Accuracy | LoRaWAN-based, Short Temperature and Humidity Probe |
| Body Material | ABS+PC | ||||||
| Wire Material | / | PVC | FEP | / | |||
| Size Main Body (L*W*H) |
75*66.5*27mm (without bracket) 82*66.5*31.3mm (with bracket) |
||||||
| Size probe(D*H) | Φ15.5*48mm | Φ15*30.5mm | Ф13*51mm | Ф5.3*30mm | Φ4*70mm | Φ5*150mm | Φ15*30.5mm |
| Weight | 106.8g | 103.1g | 131.1g | 128.9g | 129g | 138g | 138g |
| Sensor | Digital humidity and temperature sensor | Pt100，4-Wire | Digital humidity and temperature sensor | ||||
| Temperature Range | -30℃ ~ 70℃ | -30℃ ~ 70℃ | -30℃ ~ 80℃ | -40℃ ~ 125℃ | -200℃ ~ 200℃ | -40℃ ~ 180℃ | -30~70℃ |
| Temperature Accuracy | ±0.3℃ (0 ~ 30℃) ±0.5℃ (other ranges) |
±0.3℃ (0 ~ 30℃) ±0.5℃ (other ranges) |
±0.3℃ (0 ~ 30℃) ±0.5℃ (other ranges) |
±0.5℃ (-30 ~ 80℃) ±1℃ (other ranges) |
±0.5℃ (-70 ~ 130℃) ±1℃ (-130 ~ 180℃) ±2℃ (other ranges) |
±0.5℃ (-40 ~ 130℃) ±1℃ (other ranges) |
±0.3℃ (0~30℃) ±0.5℃ (other ranges) |
| Temperature Resolution | 0.01℃ | ||||||
| Temperature Units | ℃ / ℉ | ||||||
| Humidity Range | 0~100%RH | / | 0~100%RH | ||||
| Humidity Accuracy | ±5%RH | / | ±5%RH | ||||
| Humidity Resolution | 0.01%RH | / | 0.01%RH | ||||
| Logging Capacity | 20,480 | / | |||||
| Recording Mode | Cyclic storage ( older data is automatically overwritten when capacity is full ) | / | |||||
| Bluetooth Chipset | Nordic nRF52 series | / | |||||
| Protocol | Bluetooth® LE 5.0 | LoRaWAN | |||||
| Broadcast Power | -40dBm ~ +4dBm | 19dBm(max) | |||||
| Broadcast Range | 200 m (open area) | 150 m (open area) | Communication distance: > 1km (Visual range) |
||||
| Battery Capacity | 2,700 mAh ( lithium battery ) | ||||||
| Battery Life | 3 years (default) | 10 years | |||||
| LCD Display | Supported | / | |||||
| Buzzer | Supported | / | |||||
| OTA | Supported | ||||||
| Security | Supports password-protected connections to prevent unauthorized access and modifications. | ||||||
| Operating Temperature | -30 ~ 70℃ | ||||||
| Operating Humidity | 0~95%RH，no condensation | ||||||
| Protection | IP65 | IP64 | IP65 | IP65 / IP67 | IP67 | IP64 | |
