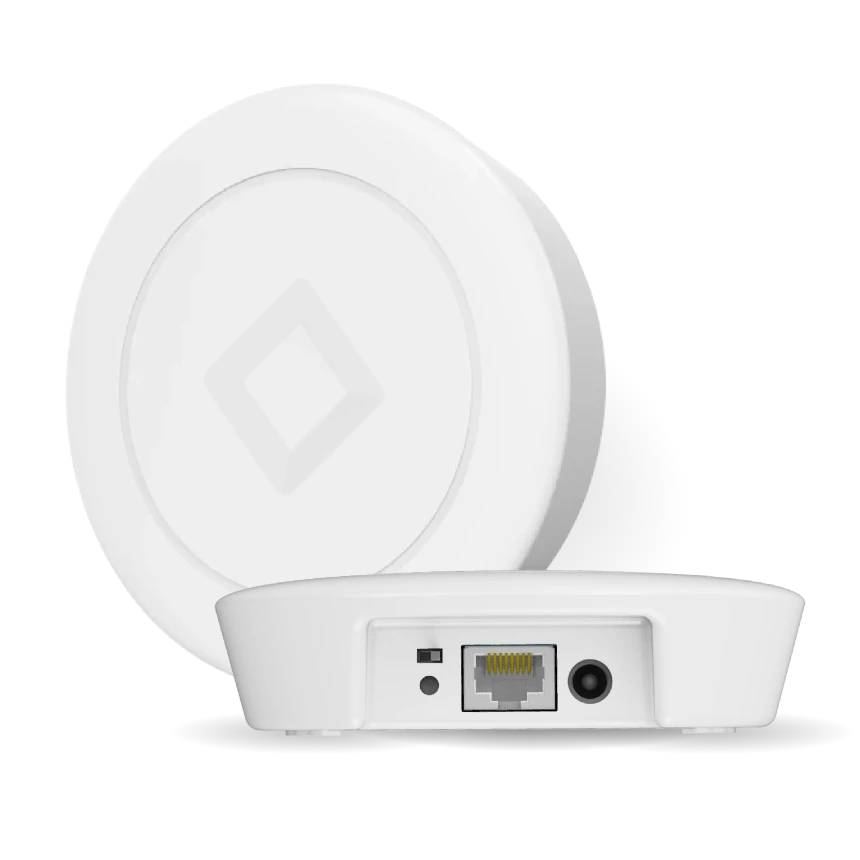

IoT-Gateway MG4 Wiederaufladbares PoE-Gateway
Einführung

Reliable Monitoring Edge Intelligence

24/7 Sichtbarkeit über kritische Einrichtungen hinweg

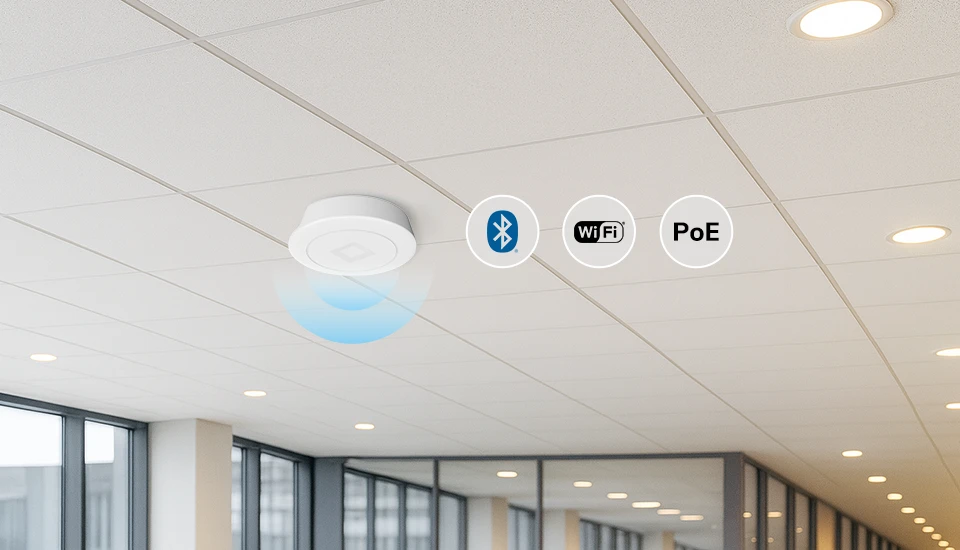

The MG4 Rechargeable PoE Gateway ensures continuous operational visibility in challenging environments. Its dual-chip design maintains stable backhaul while scanning Bluetooth signals with high throughput and low latency, delivering critical data to the cloud in real time. Powered by PoE for easy installation and remote recovery, it features a built-in battery and store-and-forward buffering to preserve data during power or network outages, automatically syncing once restored.
By reducing radio noise through smart filtering and leveraging BLE 5.1 extended advertising, the gateway provides richer context with fewer transmissions. This results in cleaner data, improved analytics, and reliable visibility across facilities, assets, and operations-without overbuilding the network.
  • ESP32-S3 & nRF52833 Chipset
  • Bluetooth 5.1 Extended Advertising
  • Dual Antennas lsolated Radios
  • Resilient Ethernet & Wi-Fi With Failover
  • 2,000 mAh Backup Battery
  • Offline Data Buffering
  • Edge Filtering
  • Preassigned Static IPs
Data

Data Reliability and Timeliness

Never miss critical data. Dedicated processing by the nRF52833 ensures precise and timely handling of Bluetooth advertisements, guaranteeing data integrity and system reliability.
Reduced

Reduced Latency & Seamless Experience

Experience zero lag in critical applications. Dual-antenna isolation and specialized scanning reduce latency, ensuring time-critical data is processed efficiently and delivered to your system on schedule.

Minimize Latency To Ensure Timely Transmission Of Time-Critical Data

HIGH PERFORMANCE

Dual Chip Architecture Boosts Concurrency

ESP32-S3 handles application processing while Nordic nRF52833 handles Bluetooth signal scanning and parsing Bluetooth 5.1 extended advertisement packets. The dual-chip split and dual-antenna isolation keep frame rates high, up to 350 packets per second, reduce latency, and prevent backlog, so that time-critical data reaches systems on schedule.
watermark
light
350Packets/s
The dual-chip architecture and dual-antenna isolation design maintain a high frame rate.
-44%
Reducing latency and preventing data congestion, ensuring that time-sensitive data arrives at the system on time.
Vorteile

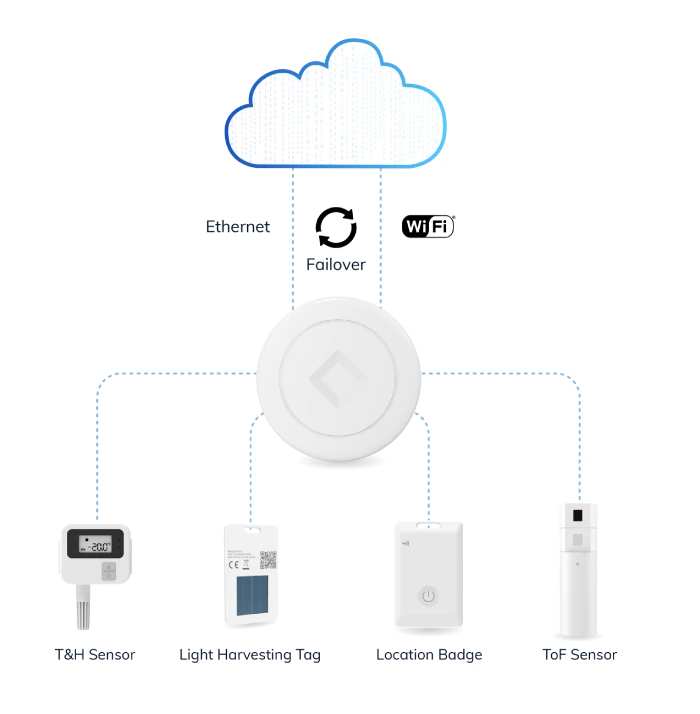

Resilient Ethernet & Wi-Fi Backhaul With Failover

Use Gigabit Ethernet as a stable backhaul with Wi-Fi on standby for temporary deployments. If the link becomes unstable, traffic can be switched in seconds to keep critical services running. The MG4 gateway’s local store-and-forward buffer preserve every record during disruptions and sync on return.
Get A Quote
advantages
Vorteile

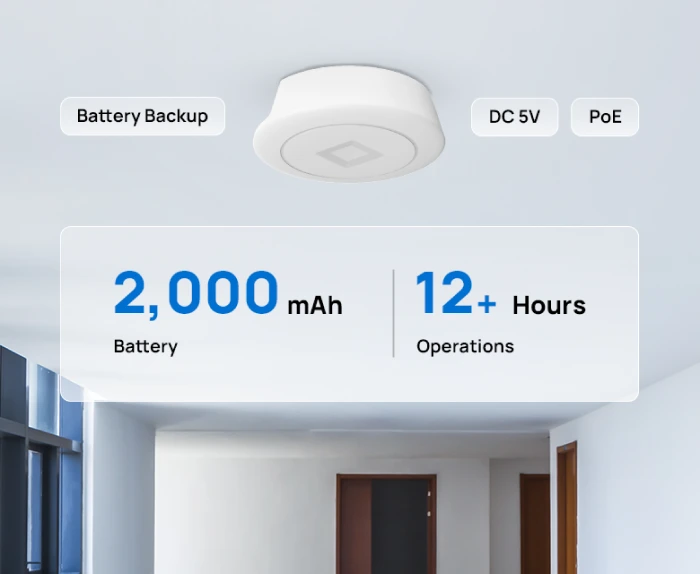

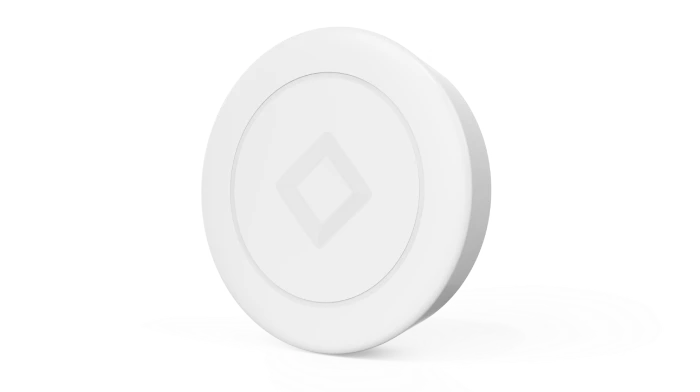

Continuous Operation With Battery Backup

PoE or DC power is backed by a 2,000 mAh rechargeable battery that runs 12 hours during outages. Sites remain protected and data capture continues even when local power is unavailable.
Get A Quote
advantages
Vorteile

Edge Filtering Delivers Clean Data

Use RSSl thresholds, MAC lists, or regex on raw data to filter traffic at the edge. lt ensures high-quality communications in RF-congested environments and reduces bandwidth use and cloud costs.
advantages

  • Enhanced Data Quality

    Ensure clear communications in crowded RF environments. Filtering unreliable raw data at the edge guarantees only high-quality information is processed.
    Enhanced

  • Increased Efficiency

    Boost system efficiency by eliminating noise. Edge filtering uses Regex and threshold checks to quickly reduce data volume, speeding up cloud tasks.
    Increased

  • Reduced Operating Costs

    Cut cloud and bandwidth expenses instantly. By pre-filtering irrelevant traffic using MAC lists or RSSI, only essential data is transmitted.
    Enhanced
Vorteile

More Safety Features

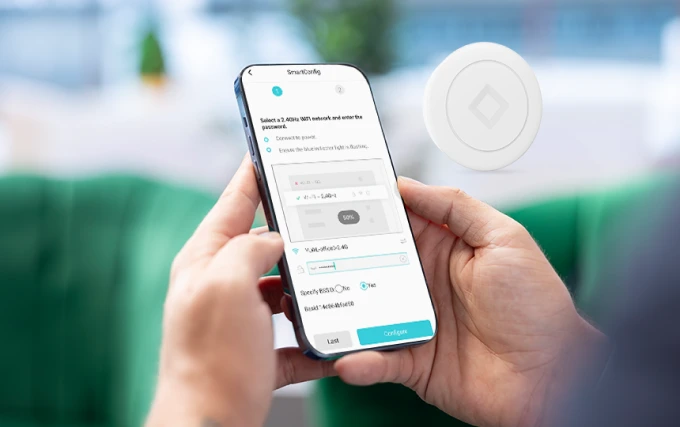

Fast Safe Configuration With MinewLink

Configure with the MinewLink App using smart config, Bluetooth onboarding, or AP setup. Teams finish setup faster, reduce errors, and avoid return visits. Large rollouts are simpler to stage, verify, and hand over.

Preassigned Static IPs Simplify Operations

With preconfigured static IP addresses for batch deployment, devices are ready to use at power-up. No per-device setup or DHCP conflicts hurting uptime. Just constant access and visibility.
  • advantages-04
  • advantages-04
IoT

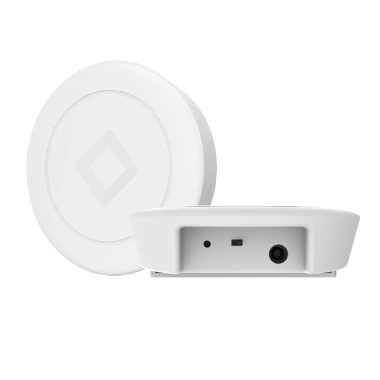

MG4 Wiederaufladbares IoT-Gateway		 PoE

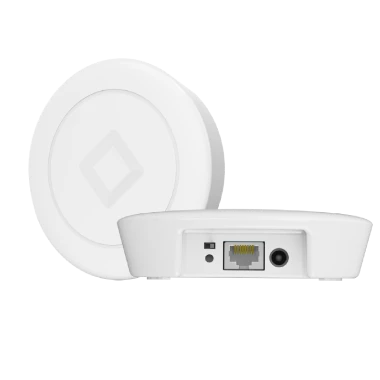

MG4 Wiederaufladbares PoE-Gateway
Deployment style Highly mobile and quick start Steadier always-on placements
Chipset ESP32-C3 ESP32-S3 & nRF52833
Scanning Range 100 m 180 m
Received Data Packets 100 packets/s 350 packets/s
Strom DC, battery backup PoE, DC, battery backup
RF Design One antenna shared by BLE & Wi-Fi Dual-antenna, separate BLE and Wi-Fi radio
Edge Filtering check check
Offline Data Buffering check check
Konfiguration BluFi, SmartConfig, AP Mode, pre-configured static IP BluFi, SmartConfig, AP Mode, pre-configured static IP
Best Fit Fast start, minimal wiring, longest battery use Consistent scale-out and stable operations across sites
Anwendungen

Applications For All You Need

Case Study

Krankenhaus und Gesundheitswesen

Ensures reliable monitoring of critical equipment and environments, protecting data continuity and supporting uninterrupted healthcare operations.

Smart School

Enhances student and staff safety with real-time data collection, reliable connectivity, and continuous visibility across campus environments.

Smart Building

Enables continuous monitoring of infrastructure and occupancy with resilient connectivity, supporting energy optimization and intelligent building management.

Lagerverwaltung

Delivers reliable tracking of inventory, equipment, and workflows, maintaining operational visibility even during network or power disruptions.

Smart Venue

Supports high-density environments with stable connectivity and real-time insights for crowd management, asset tracking, and seamless operations.
  • Krankenhaus
    Hospital & Healthcare
  • Schule
    Smart School
  • Building
    Smart Building
  • Lagerhaus
    Lagerverwaltung
  • Venue
    Smart Venue
technische Daten

Spezifikationen

MG4 Rechargeable PoE Gateway dimensions
* Für die genauen Abmessungen beziehen Sie sich bitte auf das physische Objekt.
Modell MG4
Network Wi-Fi / Ethernet
Blitzlicht 16MB
Betriebstemperatur −20~55°C
Charging Temperature 0~45°C
Working Humidity 10%~90%RH
Firmware Upgrade OTA / LAN
Bluetooth-Version Bluetooth LE 5.1
Number of Received Data Packets About 350 packets per second
Scanning Range Up to 180m (open space, 0dBm Beacon)
WiFi-Protokolle IEEE 802.11 b/g/n
Netzwerk-Protokoll MQTT (SSL/TCP), HTTP (HTTP/HTTPS)
Drahtlose Verschlüsselung WEP, WPA_PSK, WPA2_PSK, WPA_WPA2_PSK
