Precision tracking
(1–3m)

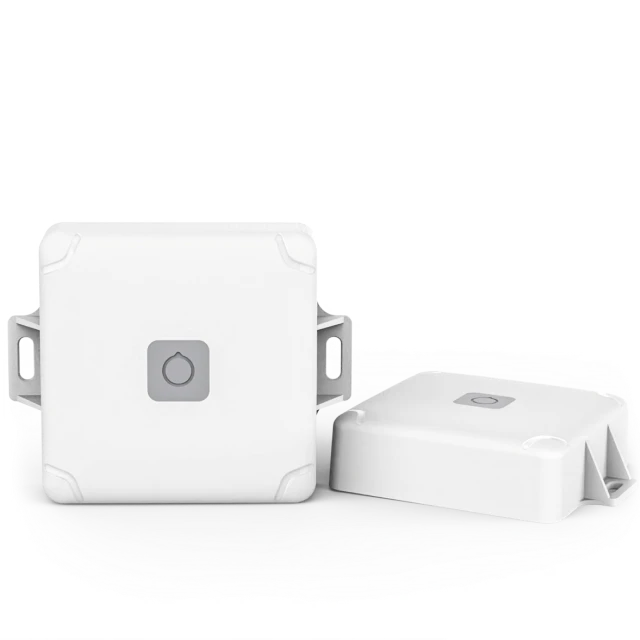

The MBM04 is a powerful, spatial-aware hub designed to deliver precise, cost-effective, and future-ready positioning for your operations. It acts as an Anchor, Relay, and Beacon, achieving high-accuracy tracking (1–3m) by forwarding data from up to 100 tags. Engineered for reliability, the MBM04 features a rugged IP67 design and a 10-year maintenance-free operation to eliminate labor costs and downtime. Its powerful relay functionality and ultra-low-power radio reduce gateway deployment by 50% while supporting Bluetooth 6.0 Channel Sounding for future upgrades. Simply place the MBM04 for instant wireless setup, making it the engine of growth for your spatial intelligence needs.
- 1–3 Meter Precision Tracking
- 3-in-1 Anchor, Relay & Beacon
- nRF54L15 Chipset
- Bluetooth Channel Sounding Ready
- Forwards Data from Up to 100 Tags
- 10 Jahre Batterielebensdauer
- IP67 Industrial-Grade Durability
- True Wire-Free Deployment

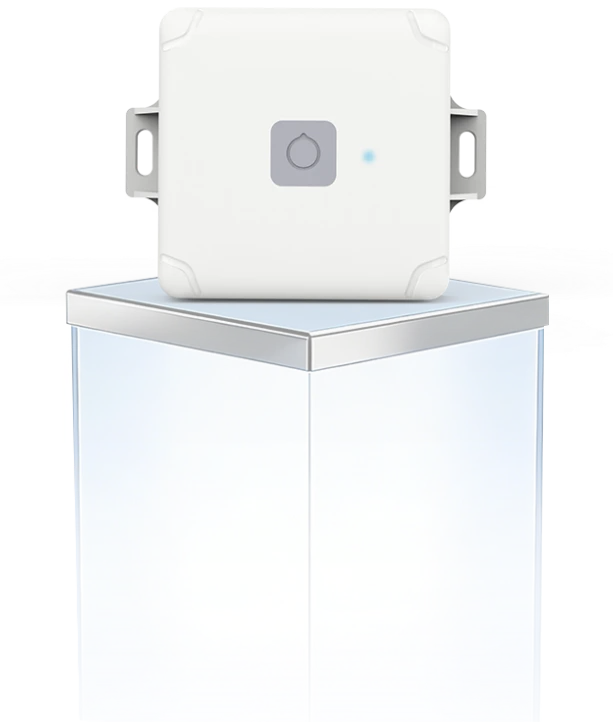

Why MBM04 is Your Strategic Advantage
The MBM04 is an intelligent, spatial-aware positioning hub that acts as an Anchor, Relay, and Beacon to deliver precise, cost-effective, and future-ready positioning for your project.
-
-
Reduces gateway
deployment by 50% -
10-year maintenance-free
operation -
Future-ready architecture for
Bluetooth-Kanal-Sounding

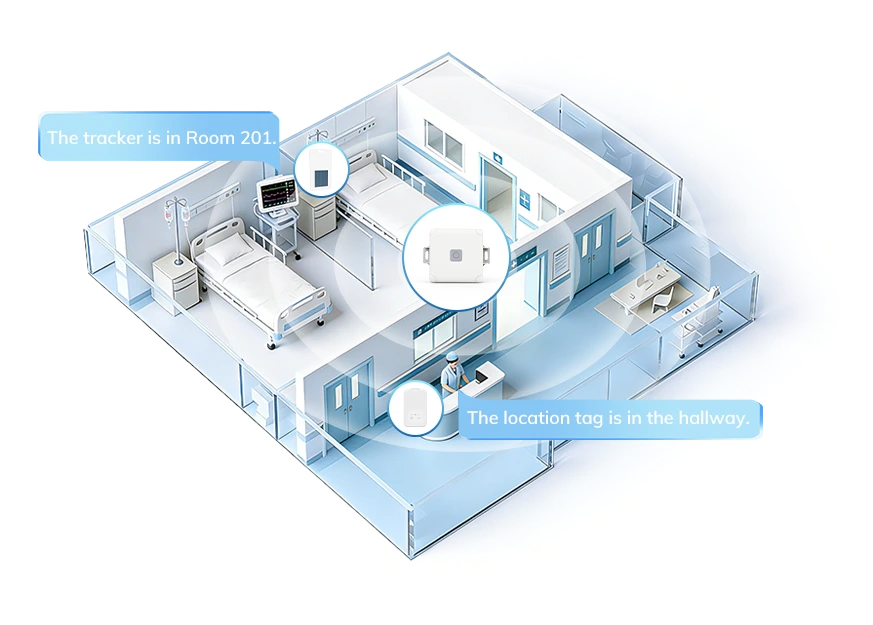

Spatial Intelligence:
From Vague Zones to Pinpoint
Upgrade from vague zones tracking to precise spatial intelligence. Designed to integrate seamlessly into advanced positioning systems, MBM04 enables 1–3 meter pinpoint accuracy with proper deployment. The high-capacity core allows each MBM04 to simultaneously forward data from up to 100 nearby tags, ensuring superior room-level awareness without deploying many gateways.

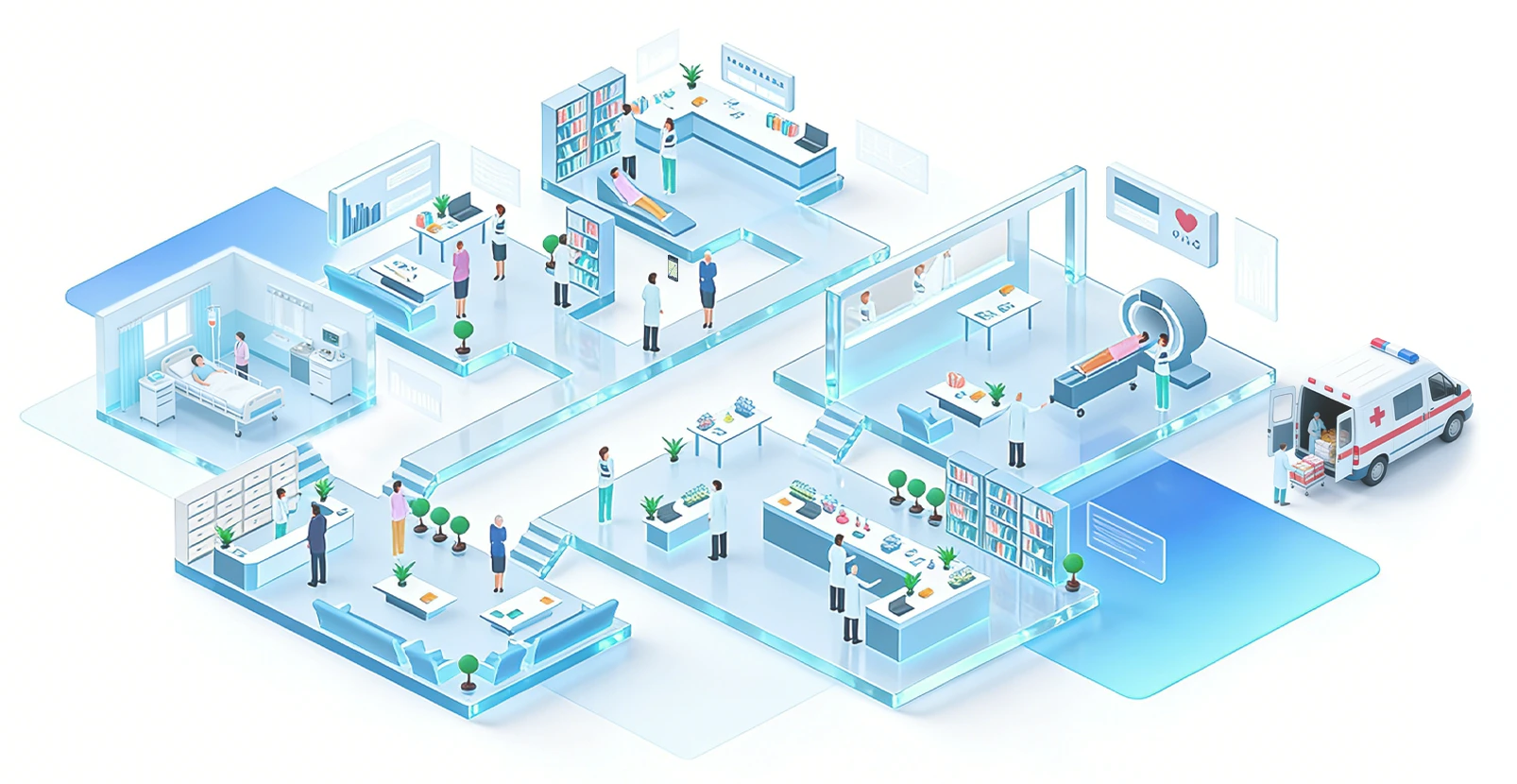

3-in-1 Beacon:
Navigation, Automation, and Mobile Tracking
Mobile Tracking
Mobile Asset Tag: When mounted on a movable asset, the MBM04 can broadcast its ID and data, allowing surrounding anchors to continuously track it as a high-value mobile location tag.
Navigation
The MBM04 serves as a standalone Bluetooth beacon, extending its value beyond pure location relay. It transforms complex facilities into easily navigable spaces, providing reliable, turn-by-turn guidance for users.
Automation
Trigger context-aware digital actions with proximity marketing. When an emergency vehicle arrives, MBM04 automatically triggers alerts to hospital staff, notifies relevant departments, and guides them to the emergency area, ensuring rapid response and efficient emergency care.
The Engine of Reliability and Future Growth

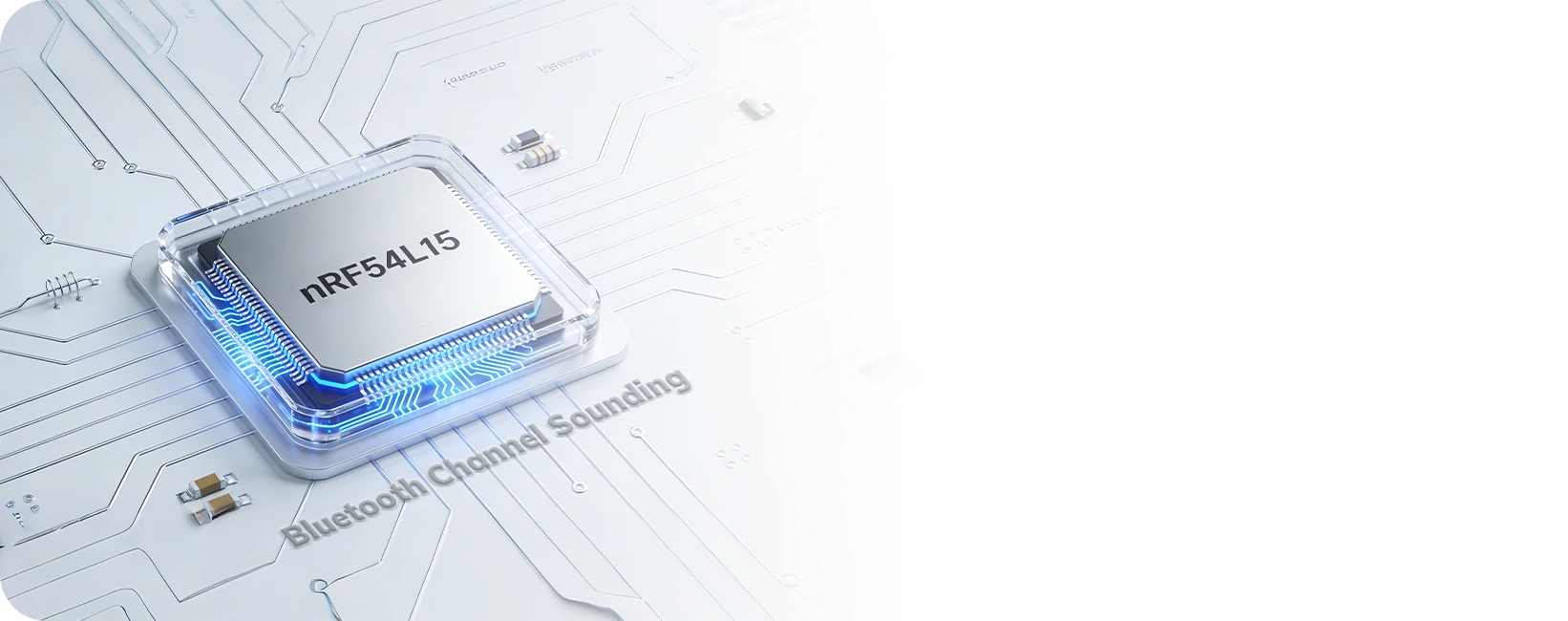

The MBM04 features the nRF54L15 chipset. Its ultra-low-power-radio ensures the battery lasts for years, while the powerful +8 dBm signal punches through complex RF environments (metal frames, walls, shelving) for stable connectivity. Plus, it supports Bluetooth 6.0 Channel Sounding, future-proofing your system for centimeter-level distance awareness.
Active Safety and Instant Location Control
The MBM04’s interactive features boost visibility and safety
Programmable Button: Triggers instant panic alarms and manual location check-ins.
RGB Light Indicator: Clear visual prompts guide personnel directly to the device.
Accelerometer & Offline Memory: The accelerometer detects movement while 60,000-record memory ensures assets stay fully traceable even offline.

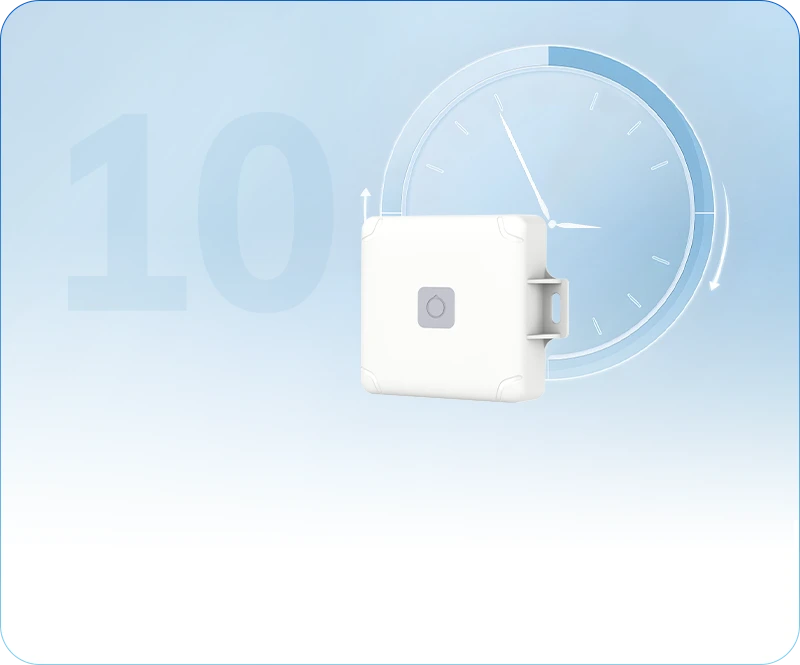

10-Year Power:
Sustainable Investment
Enjoy a decade of maintenance-free operation, eliminating costly labor and downtime. The MBM04 uses an industrial-grade battery that is easily replaceable, ensuring maximum longevity and protecting your hardware investment.

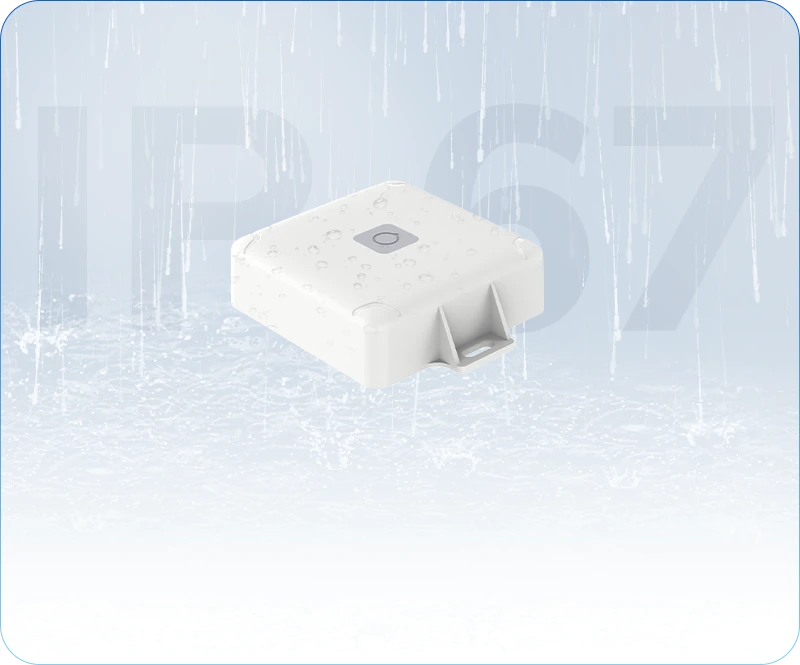

IP67 Industrial Durability:
Tracking in Harsh Environment
The MBM04 features a rugged IP67 rated casing, solving the challenge of maintaining reliability in harsh settings. This complete protection against dust, dirt, and temporary water immersion means you can confidently deploy the device outdoors or in high-demanding zones.
System-Wide Cost Reduction:
The MBM04 Location Relay Beacon
-
Zero Wiring, Wire-free Deployment
Achieve true wire-free deployment across large facilities, eliminating expensive wiring, power drops, and complex physical infrastructure setup. -
Decade of Zero Maintenance
The industrial-grade battery allows 10-year operation, eliminating the significant labor and downtime caused by frequent battery replacements. -
Reduced Infrastructure Cost
Powerful relay functionality extends gateway coverage over 2x, letting you deploy 50% fewer gateways to cut initial hardware costs. -
Maximize Tag Battery Life
By offloading the power-hungry relay work to the powerful MBM04, we drastically reduce the power consumption of asset tags.

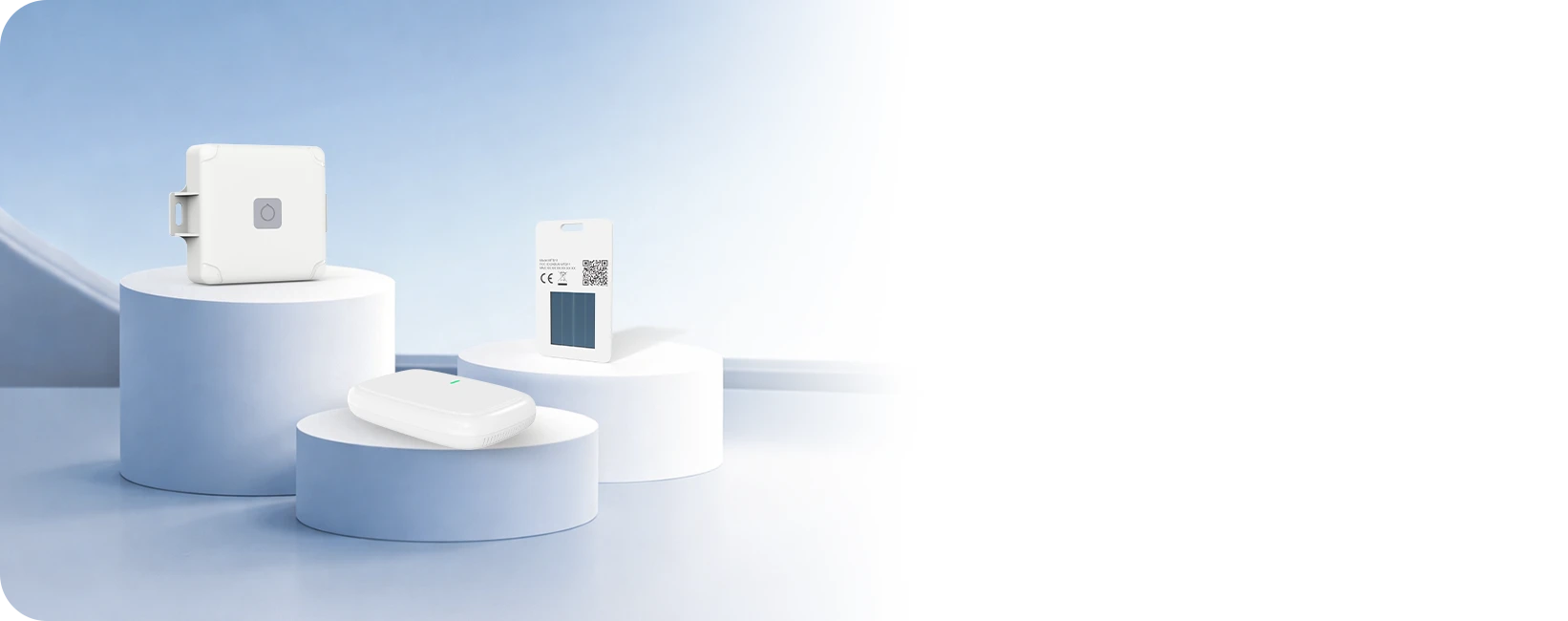

Sustainable Tracking Suite: Decade-Long, Battery-Free
Eliminate maintenance cycles with energy-harvesting tags und long-range gateways. This suite ensures continuous asset visibility across massive facilities with zero battery swaps, cutting operational costs while future-proofing your industrial IoT infrastructure.

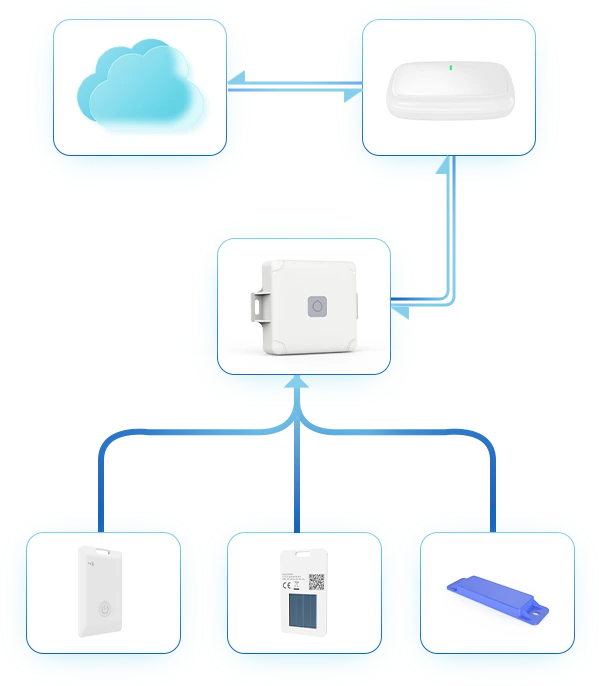

Real-Time Data Flow
Quick Deployment
For instant setup, simply position the MBM04 based on coverage needs, and it instantly functions as a wireless Anchor and Relay.
Data Flow & Tracking
The MBM04 forwards location data from nearby asset and personnel tags to the gateway. When installed on a movable asset, it also reports its own positional data to ensure comprehensive and precise tracking of all items.
Actionable Intelligence
Real-time positional data is delivered to your platform for immediate analysis and actionable alerts.
Flexible No-Wire installation

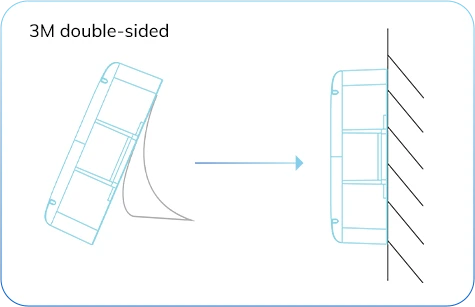

The MBM04 ensures rapid deployment and eliminates complex wiring through exceptional flexibility. You can use drill-free adhesive mounting on various materials, secure the device with screws, or use cable ties for quick attachment to infrastructure.
Seamless Soutions for Diverse Scenarios
-
Large Warehouses
Extend positioning coverage in remote warehouse zones using relay-enabled anchors, reducing gateway dependency while preserving accurate asset visibility even during temporary network outages. -

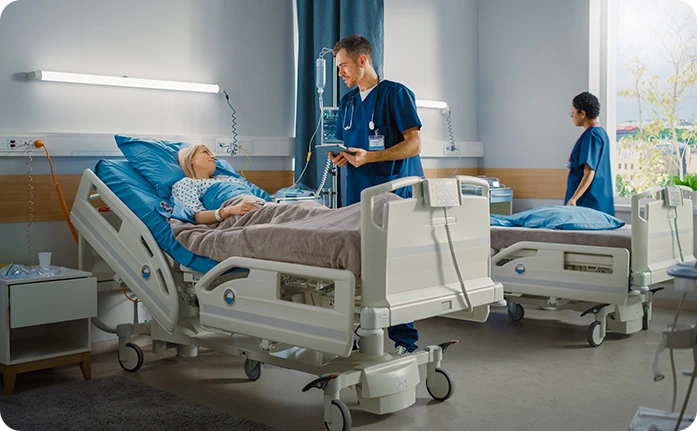

Hospital Equipment Flow
Continuously monitor critical medical equipment movement with high accuracy and minimal infrastructure, ensuring fully traceable asset paths while meeting strict durability and long-term maintenance requirements. -

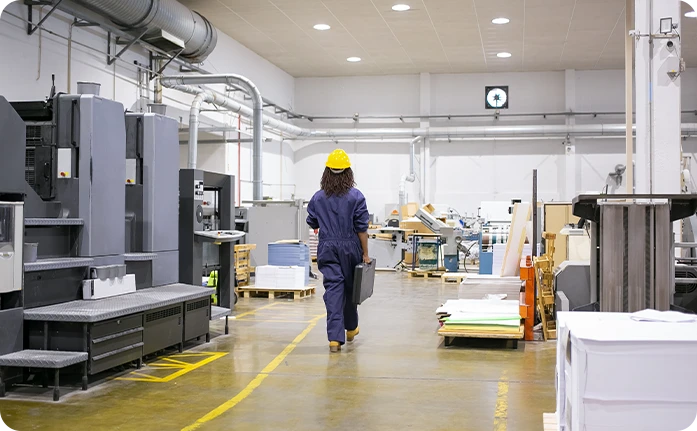

Workplace Safety Monitoring
Enable continuous monitoring of equipment status, personnel presence, and work paths across production lines, improving operational safety, incident reporting, and efficiency through reliable indoor positioning and extended relay coverage. -

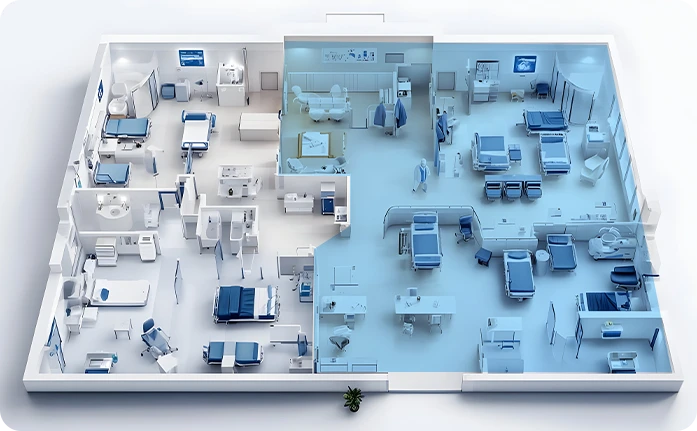

Virtual Geofencing
Create precise virtual boundaries to monitor asset and personnel movement in restricted areas, triggering real-time alerts and event logs when predefined zones are entered or exited without adding physical barriers.
-
Large Warehouses -
Hospital Equipment Flow -
Workplace Safety Monitoring -
Virtual Geofencing
Spezifikationen
| Modell | MBM04 |
| Batterie | 10,800mAh (Li-SOCl₂) |
| Nutzungsdauer | 10 Jahre |
| Betriebstemperatur | -40°C ~ +80°C |
| Luftfeuchtigkeit im Betrieb | -0% ~ 99% RH |
| Sensor | Beschleunigungssensor |
| Konfiguration | MinewLink App or remote configuration |
| LED-Anzeige | RGB |
| Schaltfläche | Power on / button alarm |
| Bluetooth-Version | Bluetooth LE 6.1 |
| Broadcasting Power | 0dBm (-40dBm ~ +8dBm) |
| Data Transmission Rate | 1Mbps (125Kbps / 1Mbps) |
| Sendebereich | 150m (standard) / 600m (long-range) in open field |
| Scanning Range | 100m (open field) |
* 600m long-range mode coming soon.
