MST01 Pt100 Temperature Sensor is a Bluetooth device designed for ultra-low and precise temperature monitoring and threshold alarms. It excels in high and low-temperature environments, making it ideal for industries like food, medical, vaccine, and biological sectors. The MST01 stands out with its customizable probes, offering flexibility to match different cable lengths and temperature ranges, ensuring it’s perfectly suited for any application. Crafted from food-grade materials, the MST01 is safe for use in sensitive environments, including food processing and storage. With 24/7 monitoring, users can set multiple custom temperature thresholds and receive instant alerts if any are breached. The sensor’s large local storage capacity ensures you won’t lose critical data, keeping your operations running smoothly.
Key Benefits: Designed for High-Performance Environments
Customizable Probes Various custom options are available, including FEP wire length, probe material and length, and temperature range.- Food-Grade ProbesMade from food-grade materials, the MST01 Pt100 temperature sensor is perfect for sensitive environments requiring strict hygiene standards.
- High-Precision MonitoringUtilizes a 4-wire Pt100 sensor with Class A accuracy for precise temperature measurements, along with a calibration report.

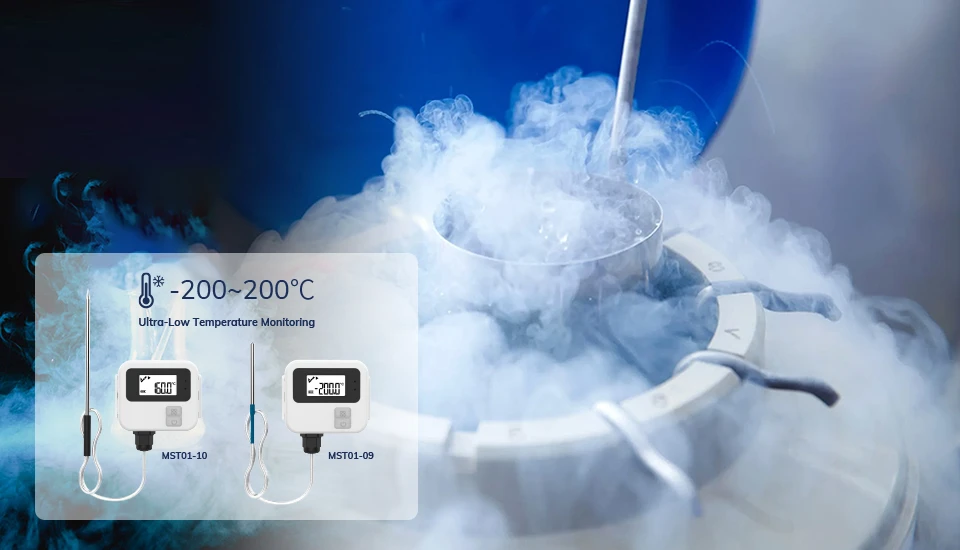

- Ultra-Low Temperature Capabilities The sensor supports extreme low-temperature monitoring, with different probes covering -40 ~ 180°C and -200 ~ 200°C* . The range can be customized as needed.
- Real-Time Data VisualizationDisplays stored data status, including max, min, and average values, and whether data is within thresholds. Temperature data can be visualized via an app and exported to Excel.
- Configurable Temperature ThresholdsUsers can set multiple temperature thresholds to receive immediate alerts when limits are exceeded, allowing for timely adjustments.
- Large Local Data Storage of 20,408 LogsCapable of storing up to 20,408 logs, ensuring comprehensive data collection and minimizing the risk of data loss.
- IP67 Dust and Water ResistanceBuilt to withstand harsh environments, the MST01 is fully protected against dust and water, making it ideal for industrial high-performance applications.
NIST Certified
Ensuring unwavering accuracy in the harshest environments, the MST01 sensor is rigorously tested and validated through NIST-traceable calibration.
Nahtlose Lösungen für unterschiedliche Szenarien
Ultra-low temperature storage technology is widely used in the medical and food industries. It provides more effective preservation of living tissues, biological samples or seafood, and ensures the freshness. Minew’s MST01 series can reach temperatures as low as -200°C, meeting the ultra-low temperature recording needs of various industries.
Biological Sample
Seafood Preservation
Laboratory Investigation
Medical Vaccine
Dry Ice Transportation
Vergleichstabelle der MST01-Serie - Übersicht der wichtigsten Spezifikationen
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
| Version | MST01-01 | MST01-02 | MST01-03 | MST01-04 | MST01-09 | MST01-10 | MST01 LoRaWAN L01 | MST01 LoRaWAN L02 | MST01 LoRaWAN L03 |
| Eigenschaften | Atmungsaktiver kurzer Temperatur- und Luftfeuchtigkeitsfühler | PE-Schutzhülle, staubdicht und beschlagfrei, kurze Temperatur- und Luftfeuchtigkeitssonde | PE-Schutzhülle, staubdicht und beschlagfrei, lange Temperatur- und Luftfeuchtigkeitssonde | Lange Temperatur- und Luftfeuchtigkeitssonde aus Edelstahl | Pt100-Sensor, Ultra-Niedrigtemperatur-Erfassung, Klasse A-Genauigkeit | Lebensmitteltaugliche Sonde, Klasse-A-Genauigkeit | LoRaWAN-basiert, nRF54L15-Chipsatz, 100.000 Daten-Loas |
||
| Material des Gehäuses | ABS+PC | ||||||||
| Drahtmaterial | / | PVC | FEP | / | |||||
| Größe Hauptkörper (L*B*H) |
75*66,5*27mm (ohne Halterung) 82*66,5*31,3mm (mit Halterung) |
||||||||
| Größe Sonde (D*H) | Φ15,5*48mm | Φ15*30,5mm | 1 m (Sonde + Kabellänge) | 1,07 m (Sonde + Kabellänge) | 1,15 m (Sonde + Kabellänge) | Φ15*30,5mm | 1 m (Sonde + Kabellänge) | ||
| Gewicht | 106.8g | 103.1g | 131.1g | 128.9g | 129g | 138g | 100g | 105g | 127g |
| Sensor | Digitaler Feuchtigkeits- und Temperatursensor | Pt100, 4-Draht | Digitaler Feuchtigkeits- und Temperatursensor | ||||||
| Temperaturbereich | -30℃ ~ 70℃ | -30℃ ~ 80℃ | -40℃ ~ 125℃ | -200℃ ~ 200℃ | -40℃ ~ 180℃ | -30~70℃ | -45℃ ~ 125℃ | ||
| Temperatur-Genauigkeit | ±0.3℃ (0 ~ 30℃) ±0.5℃ (andere Bereiche) |
±0.5℃ (-30 ~ 80℃) ±1℃ (andere Bereiche) |
±0.5℃ (-70 ~ 130℃) ±1℃ (-130 ~ 180℃) ±2℃ (andere Bereiche) |
±0.5℃ (-40 ~ 130℃) ±1℃ (andere Bereiche) |
±0.3℃ (0~30℃) ±0.5℃ (andere Bereiche) |
±0.5℃ (-10~50℃) ±1℃ (andere Bereiche) |
|||
| Auflösung der Temperatur | 0.01℃ | ||||||||
| Temperatur-Einheiten | ℃ / ℉ | ||||||||
| Luftfeuchtigkeitsbereich | 0~100%RH | / | 0~100%RH | ||||||
| Luftfeuchtigkeit Genauigkeit | ±5%RH | / | ±5%RH | ||||||
| Luftfeuchtigkeit Auflösung | 0,01%RH | / | 0,01%RH | ||||||
| Logging-Kapazität | 20,480 | 10,0000 | |||||||
| Aufnahme-Modus | Zyklische Speicherung (ältere Daten werden automatisch überschrieben, wenn die Kapazität voll ist) | / | |||||||
| Bluetooth-Chipsatz | Nordic nRF52-Serie | Nordic nRF54L15 Chipsatz | |||||||
| Protokoll | Bluetooth LE 5.0 | LoRaWAN | |||||||
| Sendeleistung | -40dBm ~ +4dBm | 19dBm(max) | |||||||
| Sendebereich | 200 m (offene Fläche) | 150 m (offene Fläche) | Kommunikationsentfernung: > 1km (Sichtweite) |
||||||
| Batteriekapazität | 2.700 mAh (Lithium-Batterie) | ||||||||
| Lebensdauer der Batterie | 3 Jahre (Standard) | 10 Jahre | 5 Jahre | ||||||
| LCD-Anzeige | Unterstützt | / | Unterstützt | ||||||
| Buzzer | Unterstützt | / | |||||||
| OTA | Unterstützt | ||||||||
| Sicherheit | Unterstützt passwortgeschützte Verbindungen, um unbefugten Zugriff und Änderungen zu verhindern. | ||||||||
| Betriebstemperatur | -30 ~ 70℃ | ||||||||
| Luftfeuchtigkeit im Betrieb | 0~95%RH, keine Kondensation | ||||||||
| Schutz | IP65 | IP64 | IP65 | IP65 / IP67 | IP67 | IP64 | IP67 | ||
