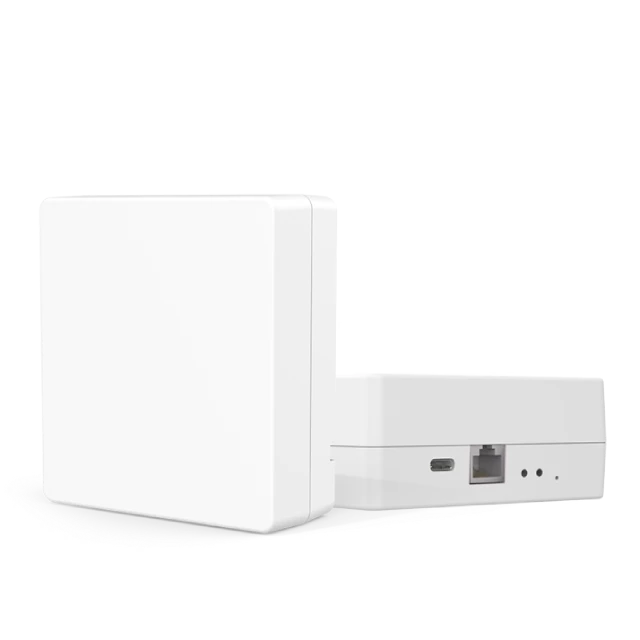

MNDBPOE1 Gateway
& PowerBridge Combo

An off-the-shelf hub deploys quickly to wake up nearby Wiliot IoT Pixels.
JETZT BESTELLEN
MNDBPOE1 Gateway
  • Einführung
  • Eigenschaften
  • Anmeldung
  • Spezifikationen
Startseite Wiederholer MNDBPOE1 Gateway und PowerBridge-Kombination
MNDBPOE1 Gateway & PowerBridge Combo; ?>

Minew MNDBPOE1 Gateway & PowerBridge Combo is designed for high-efficient deployment of Wiliot IoT Pixels. It seamlessly combines the roles of a Bluetooth bridge and a gateway, enabling reliable data transmission, network management, and pixel energizing within the Wiliot ecosystem. With PoE or USB-C power options and support for both Ethernet and Wi-Fi connectivity, the MNDBPOE1 Dual Band Bridge ensures flexible deployment in diverse environments. Optimized for Wiliot’s IoT Pixels, it is the cornerstone for building scalable Ambient IoT networks.

As the second generation of this product line, MNDBPOE1 represents Minew’s deep expertise in RF design and wireless manufacturing. With advanced facilities such as a microwave anechoic chamber and a Wideband Radio Communication Tester, Minew ensures precise RF tuning, rigorous testing, and consistent high-quality production.

Device Functionality

  • Data Path

    Data Path

    Receive Bluetooth Low Energy sensor data from IoT Pixels and relay it to your network of Internet-connected gateway devices

  • Energizing IoT Pixels

    Energizing IoT Pixels

    Transmit Sub-1GHz or 2.4GHz energy to energize and activate IoT Pixels in the nearby vicinity

  • Network Management

    Network Management

    Control and monitor the network: device topology, location assignments, connections, power profile, and configurations

  • Cloud Connectivity

    Cloud Connectivity

    Upload IoT Pixel and network data to the Wiliot Cloud via Wi-Fi or Ethernet

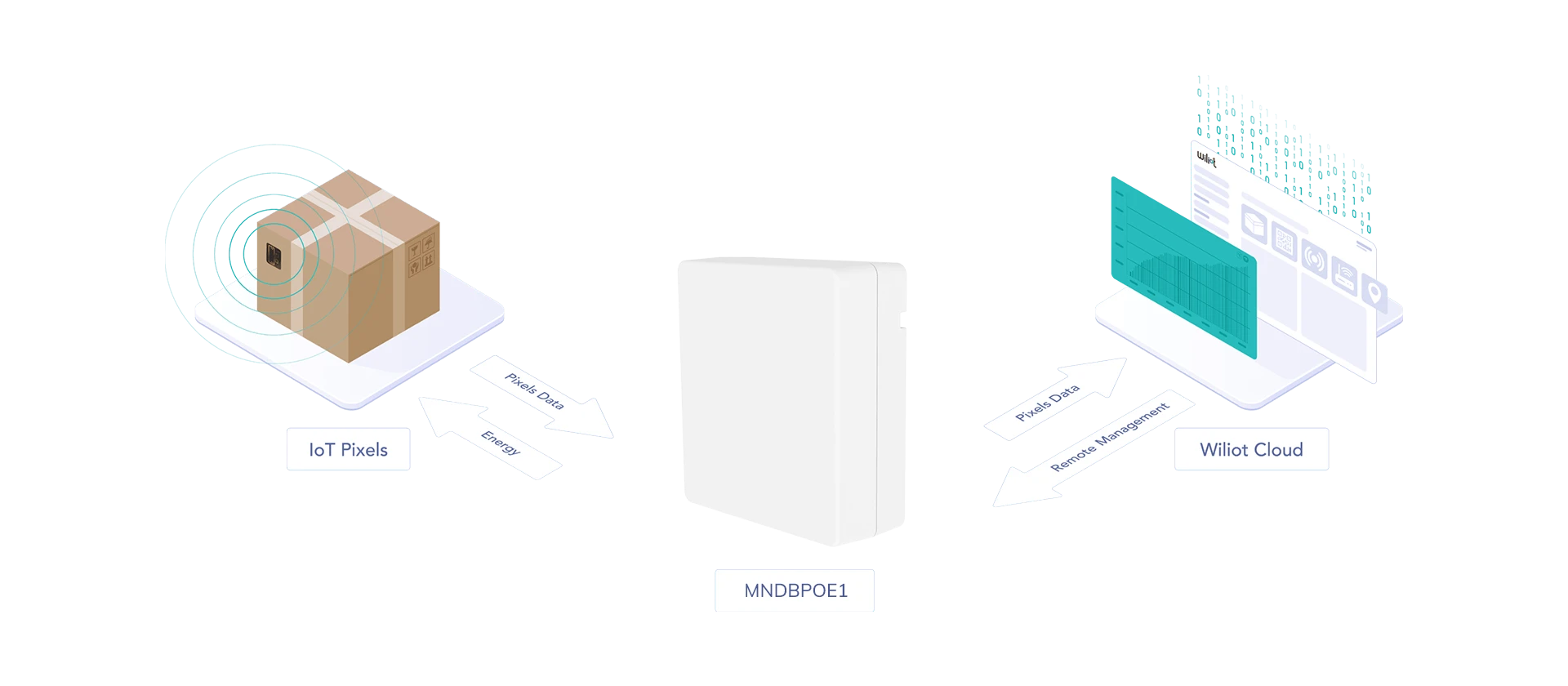

How It Works

The MNDBPOE1 Gateway & PowerBridge Combo is the critical link between Wiliot IoT Pixels und die Wiliot Cloud, enabling seamless data flow and powering the Ambient IoT.

Flexible Power & Connectivity

MNDBPOE1 offers versatile power options with PoE for enterprise-grade deployments and USB-C for fast setup. Supporting both Ethernet and Wi-Fi, it ensures seamless data transmission and maximum flexibility across diverse IoT applications.

Scalable & Reliable

Equipped with optimized Sub-GHz (915 MHz) and 2.4 GHz dual-band antennas, MNDBPOE1 delivers enhanced RF energizing efficiency and reliable BLE performance. With up to +30 dBm radio frequency output, it ensures consistent Pixel energizing and stable data delivery—ideal for scaling from pilot projects to large-scale Ambient IoT deployments.

Secure & Trusted Data Flow

MNDBPOE1 ensures encrypted, stable, and secure data transmission from IoT Pixels to the cloud. Certified with CE, FCC, RCM, RoHS, REACH, and IC, it guarantees compliance for worldwide deployments.Built for industrial-grade applications, it operates reliably in temperatures ranging from -20°C to 65°C, giving enterprises confidence in both data integrity and network security.

Sustainable Performance

MNDBPOE1 provides energy for Pixels at 915 MHz, enabling a battery-free solution with permanent endurance, maintenance-free operation, and lower costs. By removing the need for batteries, it supports global sustainability goals and promotes a greener future. Minew is committed to driving battery-free IoT innovations, helping customers achieve long-term value while supporting environmental protection.

Nahtlose Lösungen für unterschiedliche Szenarien

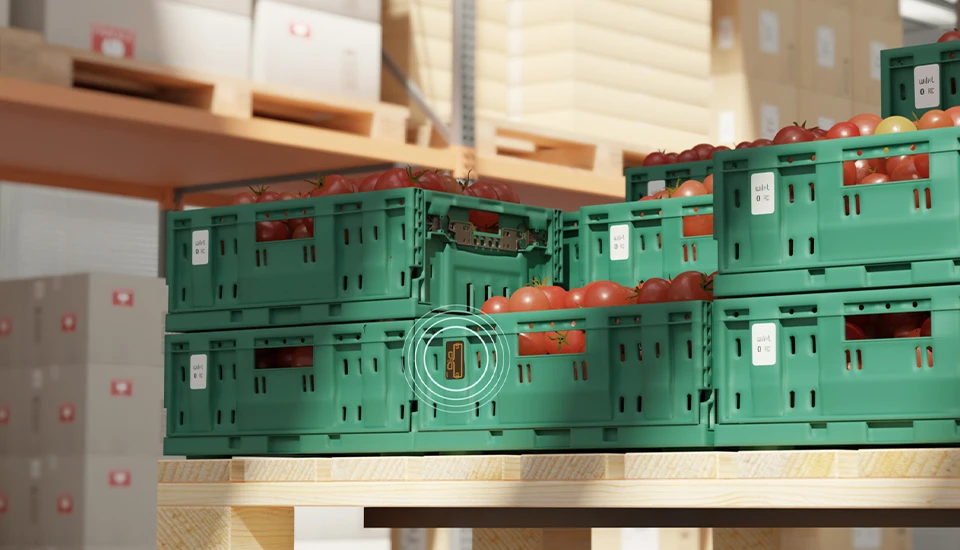

Smart Cold-Chain & In-Store Asset Tracking

Warehouse Inventory & Automated Traceability

Logistics & In-Transit Visibility

Production Line Monitoring & Ingress Control

Spezifikationen

MNDBPOE1-size dimensions
* Für die genauen Abmessungen beziehen Sie sich bitte auf das physische Objekt.
Anwendungsszenarien Innenbereich
Detailed Dimensions 11x10x4cm
Gewicht 6.9 oz
LED lndicators Blue and Red (Power and Data)
Strom POE IEEE 802.3af (PoE+ Ethernet)
5 volt. 1.5A, USB C (USB C Power and WiFi )*
Netzwerkverbindung Ethernet/WiFi
RF Performance Up to +30 dBm @ 915 MHz;
Dual-band antenna (915 MHz & 2.4 GHz)
Pixel Compatibility Supports dual-band, single-band, and battery-assisted Wiliot Pixels
Betriebstemperatur -20~65℃
Einrichtung Screw sockets, cable tie slots, ¼-20 threaded insert
Certifications CE, FCC, RCM, RoHS, REACH, IC
