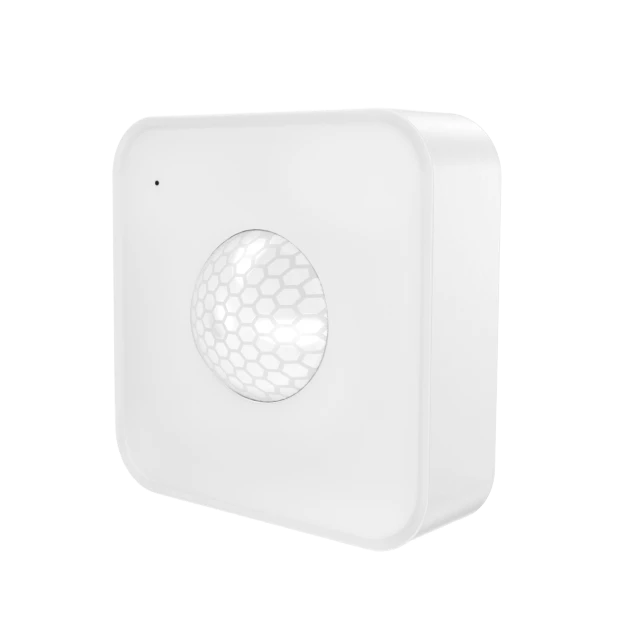

The LSP01 LoRaWAN PIR Sensor is a passive infrared motion sensor that can detect infrared radiation emitted by humans and objects, and thus monitor any status changes such as intrusion or movement with high precision. Utilizing advanced LoRaWAN connectivity, the sensor ensures reliable signal transmission over long distances, making it well-suited for diverse scenarios like office buildings, shopping malls, industrial parks, warehouses, and factories. It offers flexible use due to the maximum 10m detecting distance and 90° detecting angle. Supported by low-power LoRaWAN technology and a powerful 4000 mAh battery, the LSP01 PIR sensor provides uninterrupted operation for up to 2 years with minimized maintenance.
- LoRaWAN-Standardprotokoll
- Over 2km (1.24 miles) transmission range
- Occupancy or movement detection
- Max. 10m detecting range
- Real-time remote alarm
- 4000-mAh-Akku
Accurate Presence and Movement detection
The LSP01 LoRaWAN PIR Sensor can accurately sense the infrared light from human body or any other objects, and convert it into a voltage signal to trigger detection and alarm. It will send an instant alert to the remote monitoring platform once any intrusion is detected, ensuring security management in office buildings, real estate, markets, warehouses, and more.
LoRaWAN-basiert
Any environmental changes detected by the LSP01 sensor will be immediately and reliably transmitted to the gateway and then to the cloud platform over the LoRaWAN network.
Extended range: up to 5km (3.11 miles) in rural areas and up to 15km (9.32 miles) in urban areas
Ultra low power: Lorawan-based end nodes can be optimized to operate up to 10 years
Deep indoor penetration: easily transmit signals in multi-floor buildings
Detect Farther Than Ever
With up to 10m detecting distance and a flexible 90° detecting angle, the LSP01 PIR motion sensor ensures reliable coverage and performs accurate detection no matter how it’s deployed.
Battery Built to Last
• 4000 mAh replaceable battery
• Multi-year service life
• “Battery Low” Alert
Security System
Integrated with a security system, the LSP01 PIR sensor monitors the status change of surroundings and send real-time updates. It can instantly alerts you once detected any intrusions or emergencies, ideal for office buildings, shopping malls, museums, and warehouses.
Smart Control System
The LSP01 PIR sensor can be used in a smart control system, working with temperature, humidity, or light sensors to automate the control of environmental conditions when people enter or leave the space.
Belegungserkennung
Deployed in conference rooms or specific rooms and areas, the sensor can detect occupancy to help optimize space utilization and improve meeting management.
Nahtlose Lösungen für unterschiedliche Szenarien
Bürogebäude
Einkaufszentrum
Lagerhaus
Museum
Industriepark
Real Estate
Spezifikationen
| Grundlegende Informationen. | |
|---|---|
| Material der Schale | PC+ABS |
| Stromversorgung | 4000 mAh battery (replaceable) |
| Nutzungsdauer | bis zu 2 Jahre |
| Betriebstemperatur | -10℃ ~ 55℃ |
| Luftfeuchtigkeit im Betrieb | 10% ~ 95% RH, nicht kondensierend |
| Größe | 86mm*86mm*26mm |
| Detection Range | 8~10m |
| Erfassungswinkel | 90° |
| Einrichtung | Schraubbefestigung oder doppelseitiges Klebeband |
| Hardware-Spezifikationen. | |
| Sensor | Passive infrared |
| Anti-Demontage-Schalter | Ja |
| Schaltfläche | Einschalten / Ausschalten |
| LoRaWAN-Spezifikationen. | |
| Betriebsfrequenz | Mehrere Bänder sind möglich: EU868/US915/AS923/KR923/IN865 etc. |
| Kommunikationsprotokoll | Standard LoRaWAN®-Protokoll |
| Betriebsart | Klasse A |
| Kommunikation Abstand | >2km (in offenen Gebieten) |
