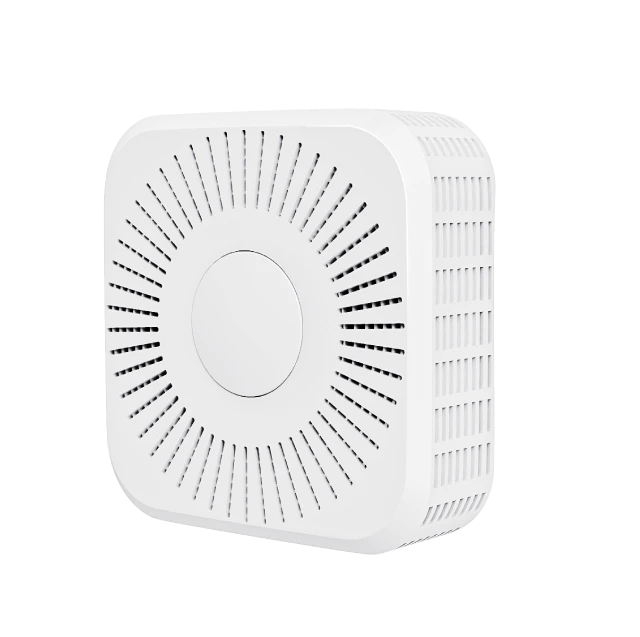

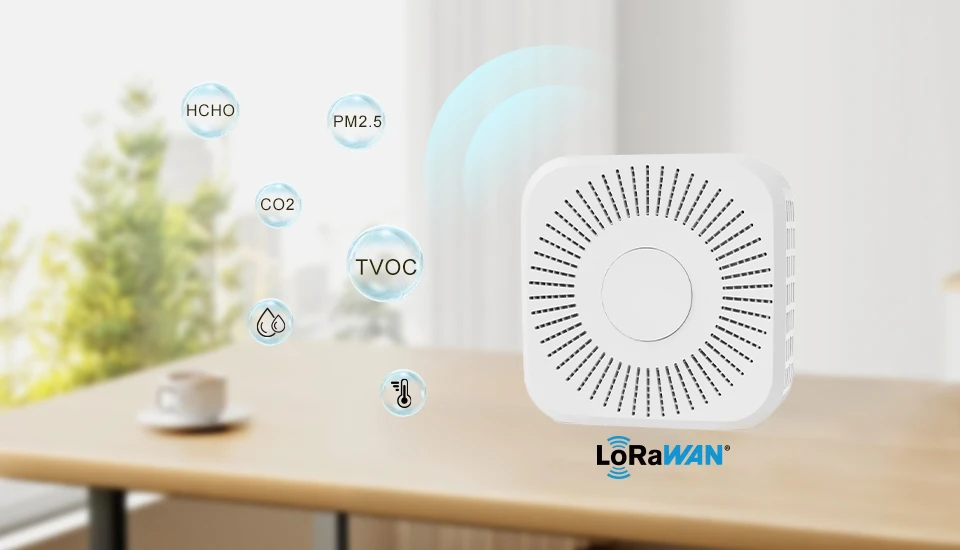

The LSG01 Air Quality Sensor is a 6-in-1 air monitoring device built on the LoRaWAN protocol. By integrating high-precision sensors, it offers real-time data on PM2.5, TVOC, HCHO, CO2 , temperature, and humidity, empowering users to monitor and improve environmental conditions in offices, public spaces, and industrial facilities. Boasting a 2km (1.24-mile) communication range in open areas and adaptable design, the LSG01 promotes healthier and safer environments across various applications.
- Comprehensive Monitoring
- Seamless Integration
- Long-Distance Communication
- Real-Time Data Access
- Durable and Reliable
- Compact and Stylish
Advanced LoRaWAN Technology
Long-range, low-power communication protocol ensures reliable data transmission at least 2km (1.24 miles) in open environments.
Integrated Multi-Sensor System
Simultaneously monitors PM2.5, TVOC, HCHO, CO2 , temperature, and humidity for comprehensive air quality assessment.
Real-Time Data Transmission
Continuous data upload to control platforms, enabling instant air quality updates and actionable insights.
Seamless Smart System Integration
Compatible with HVAC and fresh air systems for automated adjustments to improve indoor air quality.
Durable and Reliable
Operates in harsh conditions with a wide temperature range from -10℃ (14℉) to 55℃ (122℉), and humidity range from 0% to 95% RH.
Nahtlose Lösungen für unterschiedliche Szenarien
Überwachung der Luftqualität in Innenräumen
Offices, Gym, Wine Cellar
Public Spaces
Schools, Hospitals, Libraries
Industrial Environmental Monitoring
Factories, Laboratories
Spezifikationen
| Grundlegende Informationen. | |
|---|---|
| Material der Schale | PC+ABS |
| Stromversorgung | DC12~24V |
| Betriebstemperatur | -10℃~55°C (14℉~122℉) |
| Luftfeuchtigkeit im Betrieb | 0% ~ 95% RH, non-condensing |
| Größe | 100mm*100mm*30mm |
| LoRaWAN-Spezifikationen. | |
| Betriebsfrequenz | Mehrere Bänder sind möglich: EU868/US915 etc. |
| Kommunikationsprotokoll | Standard LoRaWAN®-Protokoll |
| Betriebsart | Klasse A |
| Kommunikation Abstand | >2km (1.24 miles) (in open environment) |
| Detection Item | Measuring Range | Genauigkeit |
|---|---|---|
| Temperature | -10℃~55°C (14℉~122℉) | ±0.5℃@25℃ (±0.9℉@77℉) |
| Humidity | 0～99%RH | ±3%RH@60%RH, 25℃ (±3%RH @60%RH, 77℉) |
| CO2 | 400～5000ppm | ±50ppm ±3%FS |
| PM2.5 | 0～1000μg/m³ | ±10μg/m³ ±10%FS |
| TVOC | 0～5mg/m³ | ±10% |
| HCHO | 0～1.5mg/m³ | ±10μg/m³±10%FS |
