The LG1 LoRaWAN gateway utilizes low-power, wide-area network technology with the standard LoRaWAN protocol to ensure exceptional signal coverage and robust penetration across three floors. It offers reliable LoRaWAN network coverage and enables bidirectional data transmission for IoT applications. Featuring a high-performance transceiver chip, the gateway can concurrently receive eight channels of LoRa signals. It seamlessly transmits data to an external LoRaWAN Network Server via Ethernet, WiFi, or 4G, or it can be configured to use an embedded Network Server, directly interfacing with customer application platforms. This versatile gateway is ideal for deployment in various settings, including communities, parks, and buildings, ensuring safe and stable LoRaWAN network services.
- Standard LoRaWAN-Protokoll
- High data throughput
- WiFi/ 4G/ Ethernet
- Embedded Network Server
- Switchable between network servers
- MQTT, HTTP, Modbus-TCP protocols
LoRaWAN-basiert
Based on the standard LoRaWAN protocol, the LG1 LoRaWAN Gateway delivers exceptional signal coverage of 1500-2000 square meters and superior signal penetration capabilities. Concurrently supporting 300-500 LoRaWAN terminals, it ensures reliable data transmission and processing even in large-scale deployments with numerous devices.
• Deep Indoor Penetration
• Global LoRaWAN Frequency Plans
• LoRaWAN Class A/ C

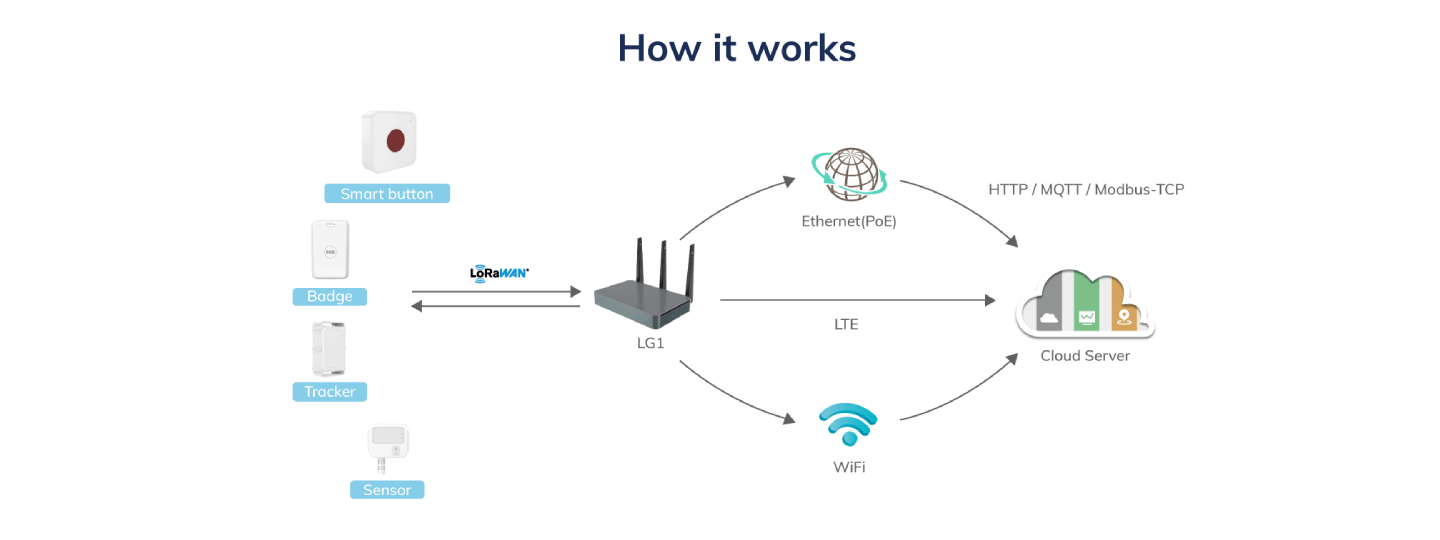

Multiple Backhaul Connectivity
By offering multiple backhaul options including WiFi, 4G, and Ethernet, the LG1 gateway can be deployed in various environments, increasing flexibility and ensuring consistent network performance in the event of a connection failure.
Relibale Multi-Channel Performance
Equipped with a high-performance transceiver chip, the LG1 LoRaWAN gateway can simultaneously receive 8 channels of LoRa wireless signals.
Easily compatible with Various Network Servers
The LG1 gateway transmits data transparently to an external LoRaWAN Network Server. Alternatively, it can be configured to use an embedded Network Server that supports MQTT and HTTP for pushing and parsing data. The LG1 can retransmit data after reconnection, thereby preventing data loss and interruptions during network failures.
Remote Device Management
• Remote configuration
• OTA upgrade
• Remote diagnostics
• Recovery management
Vielseitige Anwendungen
Intelligentes Lagerhaus
Industriepark
Intelligent Building
Sichtbarkeit in der Logistik
Spezifikationen
| BASIC SPECIFICATIONS | |
|---|---|
| Casing Material | Aluminum alloy + PC |
| Farbe | Gray (Black or white can be customized) |
| Stromversorgung | DC12V~1A |
| Betriebstemperatur | -10℃ ~ 50℃ |
| Overall Power Consumption | 7W |
| Dimensions | 180mm * 115mm * 30mm (excluding antenna) |
| Port | 10/100M base-T adaptive Ethernet interface(RJ45*2) USB2.0 (Store data or extend LET on network card) SIM card port TF card port Reset port |
| LORAWAN PARAMETERS | |
| Betriebsfrequenz | Available Frequencies:EU863-870 / US902-928 / AS923 / AU915-928 / KR920-923, etc. |
| Kommunikationsrate | 292bps~5.4kbps, supports spreading factor SF7~SF12 |
| Receiver Sensitivity | -141dBm @ SF12 |
| Sendeleistung | Max.20dBm (adjustable) |
| Channels | 8 uplink channels, 1 downlink channel |
| Protocol Support | LoRaWAN® V1.1 and backward compatibility with V1.0.X, supports Class A/C terminals |
| Device Types Support | Class A, Class C |
| ETHERNET PARAMETERS | |
| Number of Ports | 1 * WAN port, 1 * LAN port, 10/100M |
| WAN Port Protocol Support | Static, DHCP Client, PPPOE |
| LAN Port Support | IPv6 intermediate router function |
| WIFI PARAMETERS | |
| Frequency and Mode | 2.4GHz, supports STA+AP mode |
| Protocol Standard and Encryption | 802.11bgn, WPA2 PSK encryption |
| Sendeleistung | Maximum power 18dBm |
| LTE PARAMETERS (OPTIONAL) | |
| LTE Standard | Supports global frequencies for China/Europe/North America, full-netcom 3G/4G |
| SIM-Karte | 1 slot |
FAQs
Kann das LG1-Gateway eine Verbindung zu einem lokalen Server ohne Internet herstellen?
Ja. Plattformen wie ChirpStack ermöglichen eine lokale Bereitstellung auf einem PC, Laptop oder Server vor Ort, wobei der Kunde die Einrichtung übernehmen muss.Wie groß ist die Übertragungsreichweite des LG1-Gateways?
Die Reichweite hängt von der Umgebung ab: etwa 3-5 Stockwerke in Bürogebäuden, 100-150 Meter in Lagerhallen und bis zu 400-500 Meter in offenen Räumen.Ist das LG1-Gateway nur für den Innenbereich geeignet?
Ja, es wird für Innenräume empfohlen, da es keinen Staub- oder Wasserschutz hat.
