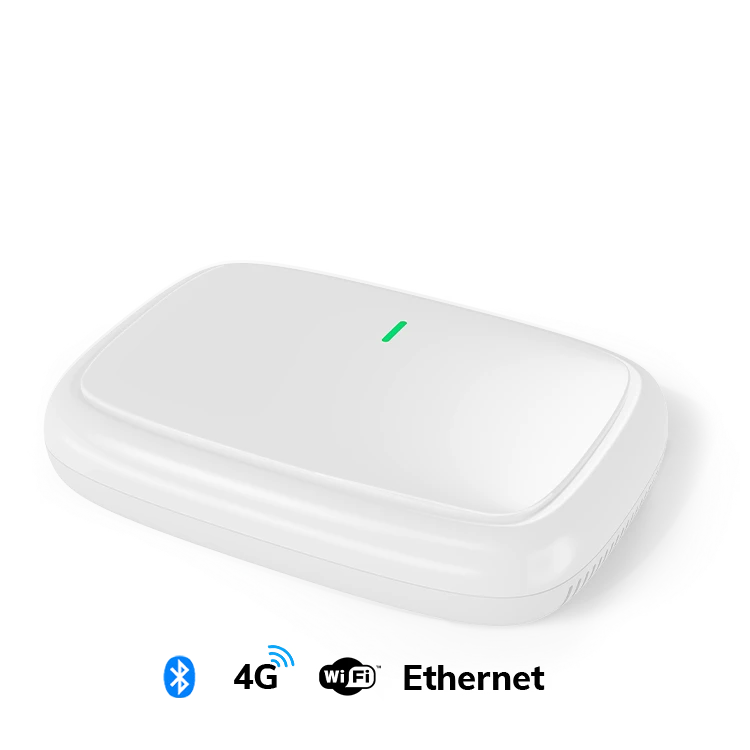

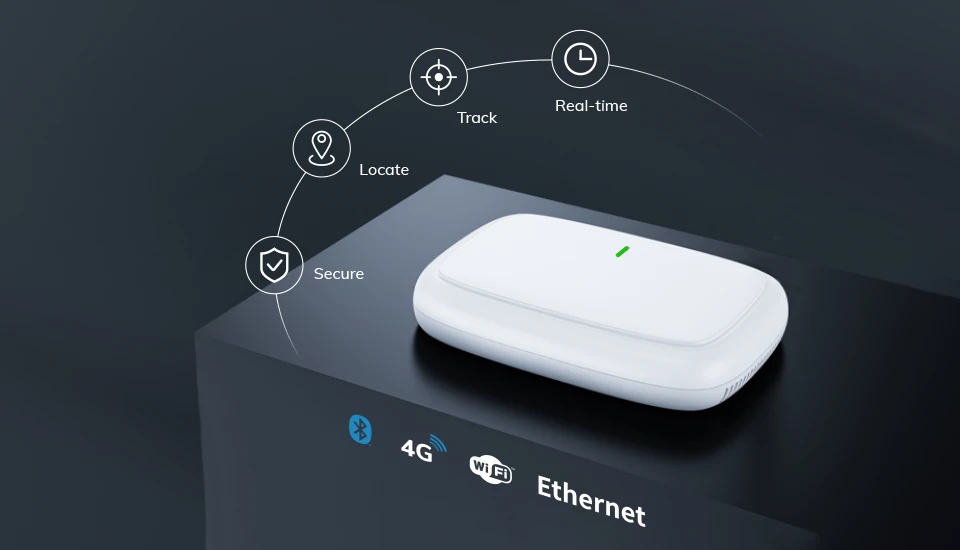

MG6 4G Bluetooth Stellar Gateway

The MG6 4G Bluetooth Stellar Gateway has a wide coverage area of up to 600 meters (open area), allowing it to swiftly scan a large number of tags and sensors, making it an ideal choice for logistics, warehouses, retail spaces, and exhibitions with high volumes of goods and foot traffic. The bluetooth gateway supports multiple upload channels, including WiFi, Ethernet, and 4G, and automatically switches between different network standards to ensure exceptional performance in complex settings. It seamlessly integrates with other ble beacons and sensors and system platforms for real-time environmental monitoring, reducing the need for manual inventory checks and other labor-intensive tasks.

  • WiFi/ Ethernet /4G
  • Intelligente Netzvermittlung
  • Edge Computing
  • Maximale Reichweite von bis zu 600 m
  • WPA/WPA2/WPA3
  • Data security (MQTT/HTTP/TCP)

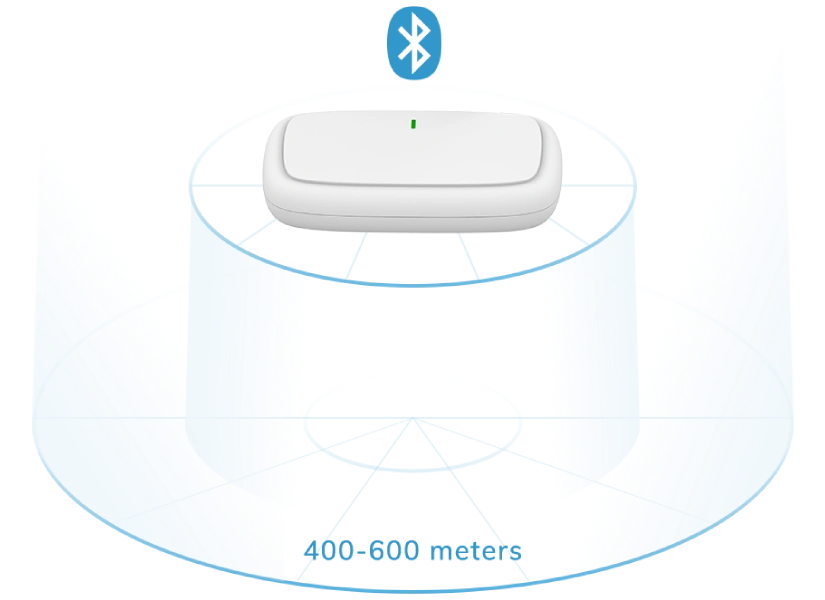

Wide Coverage Area

Supports Bluetooth scanning with a range of 400-600 meters at 125Kbps and 150-300 meters at maximum 1Mbps in open areas.
Wide Coverage Area

Multi-Channel Data Upload

Offers seamless switching between WiFi, Ethernet, and 4G networks to ensure uninterrupted operation in harsh environments by automatically switching networks.

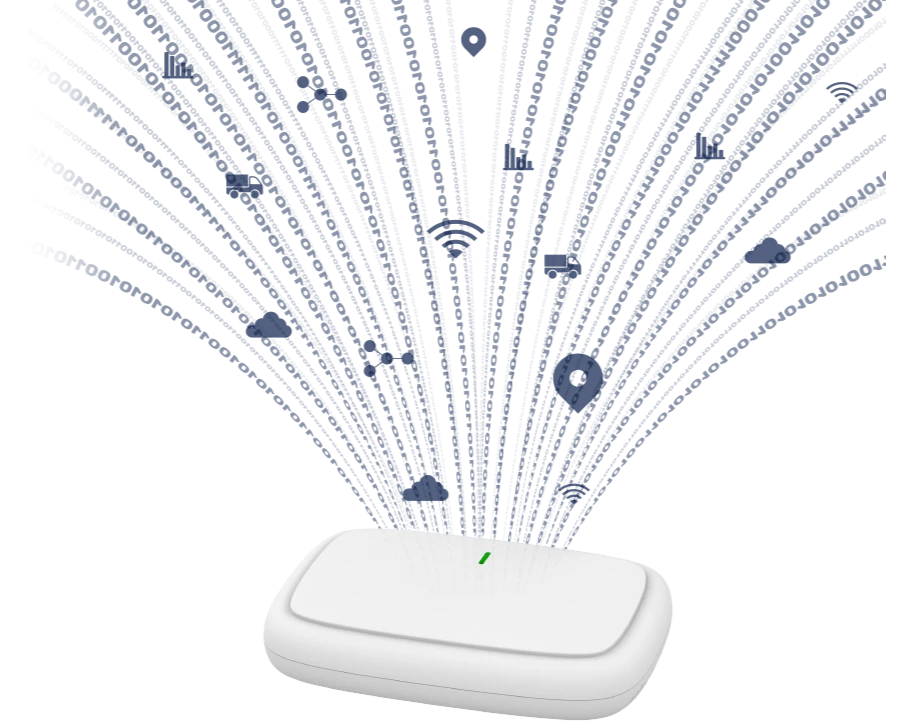

Scalable Data Throughput

The MG6 is built to support high data volumes, ensuring seamless and efficient tag scanning as demand grows. Its advanced processing capabilities adapt to varying data loads, maintaining consistent performance across diverse environments.

Accurate Data Scanning with Edge Computing

The MG6 integrates edge computing capabilities for real-time data processing, allowing it to efficiently filter and process tag data locally. By using RSSI, MAC address, and duplicate data filters, it ensures accurate, clean data without unnecessary network overhead, while reducing latency and improving system responsiveness.

High Performance Chipset

Equipped with a high-performance nRF52833 chip, supporting Bluetooth broadcasting at both 1Mbps / 2Mbps / 125Kbps, with each BLE channel capable of scanning at 400 packets per second.

• Lower Power Consumption
• Increased Flexibility and Performance

High Security

Equipped with enterprise-level WPA/WPA2/WPA3 encryption and supports MQTT/HTTP/TCP protocols, allowing data transfer to public or private cloud servers securely.

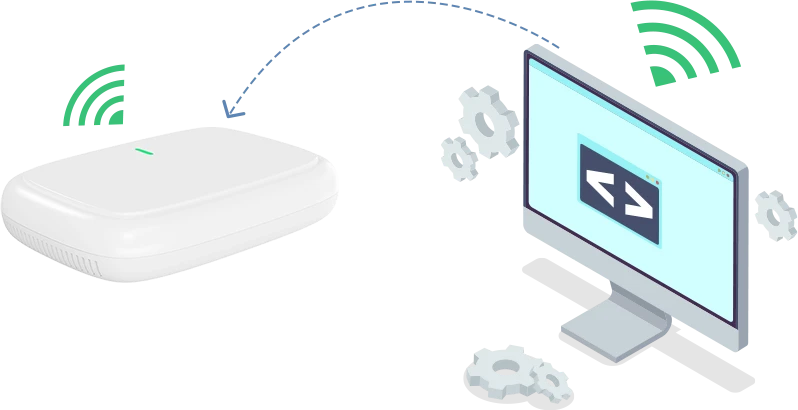

Easy to Upgrade and Maintenance

Supports OTA, LAN and TF card upgrade. MG6 4G BLE gateway comes with configuration instructions, user manuals, and customizable commands for remote control.

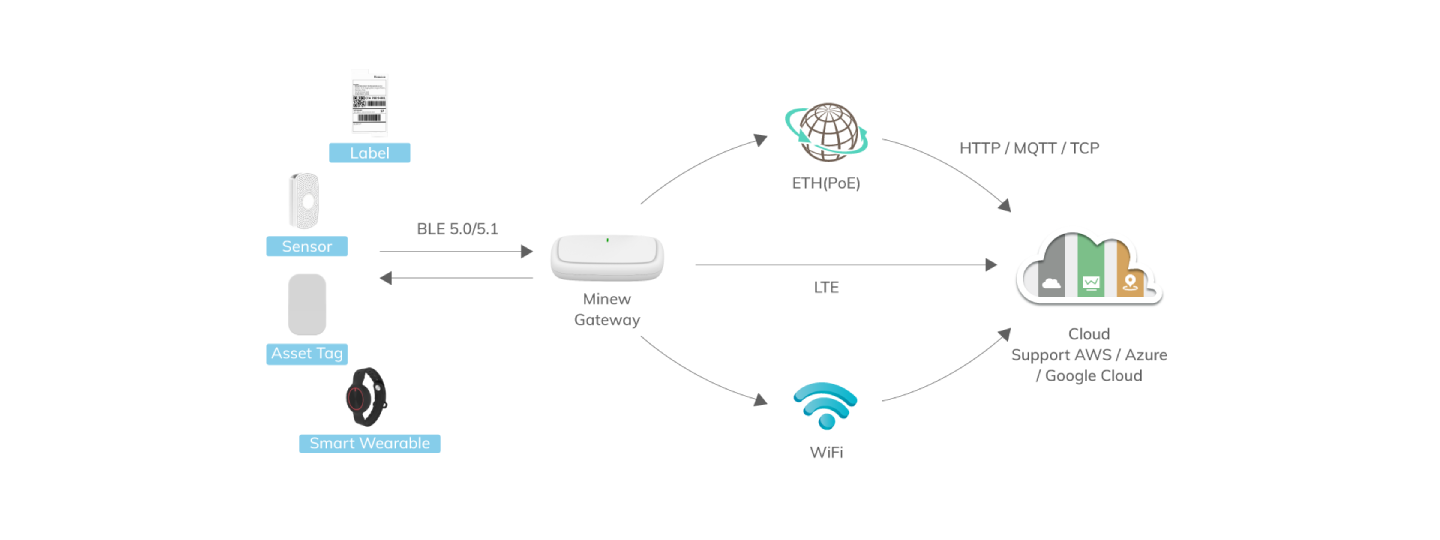

Wie es funktioniert

mg6-how-work

Flexible Deployment

Compact design supports multiple installation methods, including screw mounting, zip-tie bundling, and adhesive backing, for convenient and easy setup.
Flexible Einsatzmöglichkeiten11

Weitere Anwendungen

  • Warehousing

    Warehousing

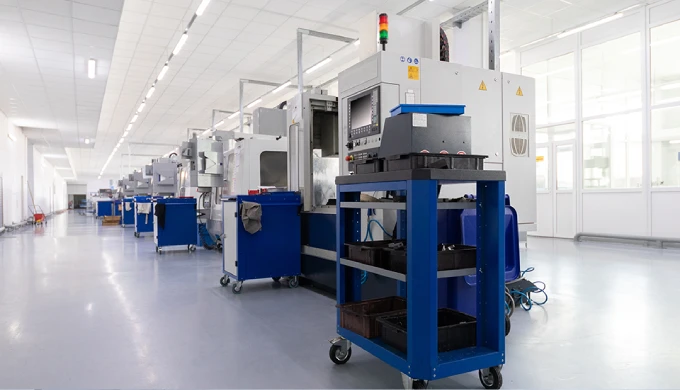

  • Fabrik

    Fabrik

  • Gesundheitswesen

    Gesundheitswesen

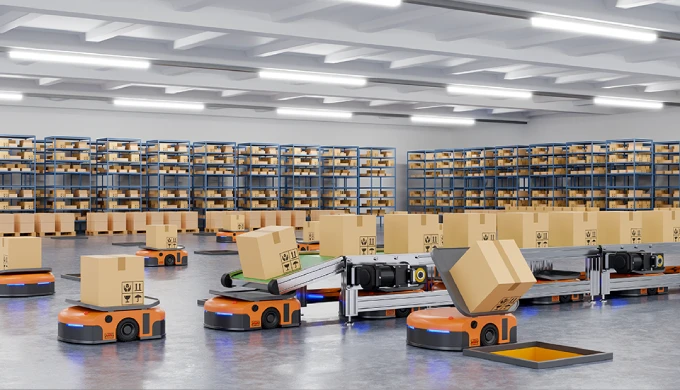

  • Logistics

    Logistics

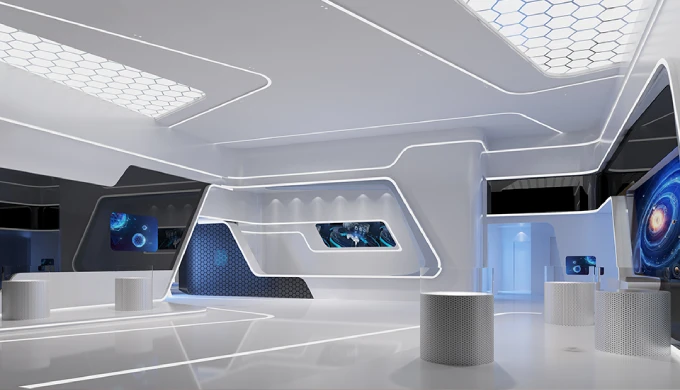

  • Smart Building

    Smart Building

Stellar Gateway: Connecting Your Isolated Devices with Innovation

At Minew, we believe that the future of connectivity lies in the stars, just like how a single device shines its power while communicating in a mesh network. Minew’s stellar gateway series comes with its powerful ability and core function to connect devices seamlessly, much like how a stellar system binds its planets together.
In the intricate and elegant tapestry of a galaxy, stars use their powerful gravity to maintain its structure. Similarly, our stellar gateway series, serves as the core of IoT universe, connecting thousands of devices. Envisioning the IoT network as a vast expanse of universe, we saw Minew gateway as the hub connecting these once-isolated data-collecting devices, providing invaluable data insights.
Engineered with advanced technology, the Stellar Gateway series is designed to deliver robust performance, exceptional reliability, and unparalleled ease of use. Whether you’re tracking assets, managing environments, or optimizing operations, our gateways serve as the vital link that keeps your operations running smoothly.

Spezifikationen

Abmessungen
* Für die genauen Abmessungen beziehen Sie sich bitte auf das physische Objekt.
GRUNDLEGENDE SPEZIFIKATIONEN.
Modell MG6
Material ABS+PC
Farbe Weiß
Stromversorgung DC 12V/1A
PoE (IEEE 802.3af)
Netzwerkverbindung WiFi/Ethernet/LTE Cat.1
Arbeitsumfeld Innenbereich
Arbeitstemperatur -20~50℃
Working Humidity 5%~95%RH, no condensation
Firmware Update OTA, LAN, TF Card
BLUETOOTH
Version Bluetooth® LE 5.0
Bluetooth Frequency 2.4-2.4835 GHz
Bluetooth-Bandbreite 2Mbps/1Mbps/125Kbps
Scanbereich 125Kbps: 400-600M
1Mbps: 150-250M (Open Area)
LTE CAT1
Frequency Band CN(FDD):B1/3/5/8/9 (TDD):B34/38/39/40/41
EU(FDD):B1/3/5/7/8/20/28
NA(FDD):B2/4/5/12/13/14/66
Sendeleistung 23dbm
Receiver Sensitivity -96 dBm @1Mbps, 30.8 %PER
-93 dBm @2Mbps, 30.8 %PER
WIFI
Wireless Standard IEEE 802.11 b/g/n
Netzwerk-Protokoll HTTP(SSL/ TLS) / MQTT(SSL/ TLS & Proxy) /TCP
Drahtlose Verschlüsselung WPA-PSK，WPA2-PSK,WPA-PSK/WPA2-PSK,
WPA3-SAE，WPA2-PSK/WPA3-SAE,
WPA-EAP，WPA2-EAP，WPA3-EAP,
WPA2-EAP/WPA3-EAP

FAQs

  • Wie überprüfe ich den Online-Status von Bluetooth-Geräten und aktiviere die automatische Wiederherstellung der Verbindung auf dem MG6-Gateway?

    Sie können den Echtzeit-Verbindungsstatus von Subdevices, die im Cache des Gateways gespeichert sind, abrufen, indem Sie den Befehl cnn read ausführen. Um ein Offline-Gerät wieder zu verbinden, sollte die Anwendungsplattform aktiv einen Verbindungsbefehl an das Gateway senden, sobald das Gerät erkannt wird. Für Geräte, die nach längerer Abwesenheit ausgeschaltet werden oder wieder auftauchen, empfehlen wir die Implementierung einer Logik auf der Anwendungsschicht, bei der der Server das Thema "Status" überwacht; wenn das Gateway die MAC-Adresse eines zurückkehrenden Geräts scannt und veröffentlicht, kann der Server dann automatisch einen Befehl zur Wiederherstellung der Verbindung an das Gateway senden.

  • Kann das MG6 sowohl eine Ethernet- als auch eine Wi-Fi-Verbindung herstellen und automatisch zwischen beiden wechseln, wenn eine der beiden Verbindungen unterbrochen wird?

    Ja. Das MG6 unterstützt Multi-Netz-Failover. Sobald Ethernet, Wi-Fi und 4G konfiguriert sind, schaltet es automatisch in der Reihenfolge Ethernet → Wi-Fi → LTE um, wenn ein Netzwerk ausfällt.

  • Does the MG6 gateway support the AMQP protocol?

    No, it doesn’t.

  • What is the maximum supported SD card capacity for the MG6 gateway?

    It is recommended to use SD cards no larger than 32GB. Cards above this size may have stability issues over the SPI interface, leading to detection failures or frequent I/O errors.

  • Does the MG6 gateway send acknowledgment packets to confirm connection and data transmission?

    It depends on the communication protocol: MQTT: Acknowledgments are handled by the MQTT protocol itself, based on the selected QoS level. HTTP: The gateway expects a 200 status code from the server in response to every HTTP POST request, regardless of whether the uploaded data is empty. TCP: As a transport-layer protocol, TCP does not include application-level acknowledgments. The server must handle packet reassembly manually.

  • Can the MG6 gateway send downlink commands to BLE devices from other manufacturers?

    Currently, it only supports downlink control for Minew BLE devices using our proprietary protocol. However, we have developed a new MG6 firmware that supports standard BLE protocols, which will be released soon.

  • Why can’t the MG6 gateway receive downlink commands when using HTTP to communicate with the server?

    HTTP is a client-initiated protocol where the server passively responds to requests. By default, it does not support server-initiated command "push" to the client. For scenarios requiring the server to actively send commands to the gateway or client, we recommend using the MQTT protocol.
