MG8 Micro-USB LTE Gateway

Compact Power. Simple Setup. Globally Connected.
ORDER NOW
MG8 Micro-USB LTE Gateway
  • Introduction
  • Features
  • Application
  • Specifications
    • Brief
Home IoT Gateway MG8 Micro-USB LTE Gateway

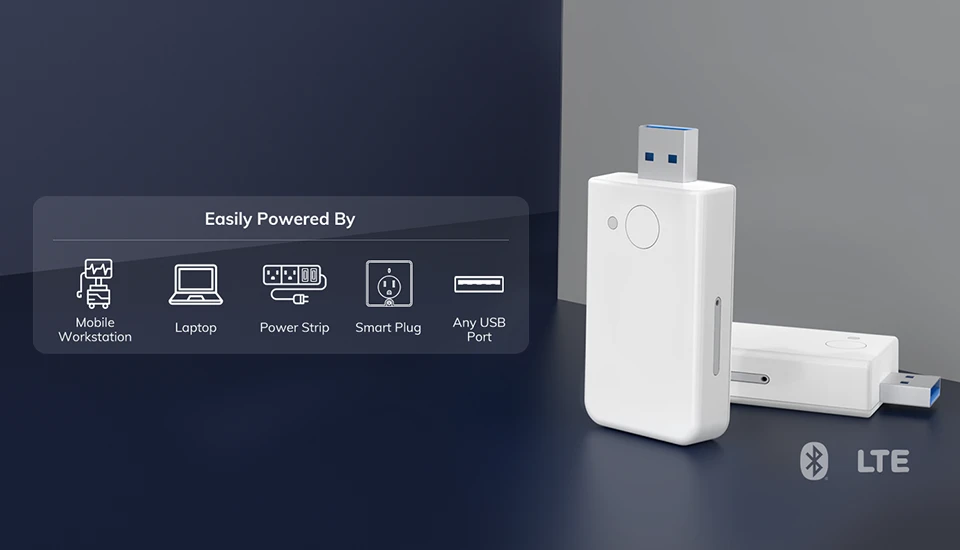

The MG8 is a revolutionary plug-and-play

The MG8 is a revolutionary plug-and-play Bluetooth gateway that simplifies real-time data collection from beacons, sensors, and trackers. Powered conveniently via a Micro-USB port, it requires no complex Ethernet cables or local Wi-Fi setup. Featuring integrated 4G Cat.1 cellular connectivity, the MG8 ensures your critical data is transmitted reliably to the cloud from any location with a cellular signal. This compact, zero-infrastructure solution is perfect for rapid deployments, mobile asset tracking, and remote site monitoring, drastically reducing installation complexity and cost.

  • Micro-USB Powered Design
  • Plug-and-Play Simplicity
  • Global 4G Cat.1 Network
  • Edge Data Filtering
  • Supports High-Priority Reporting
  • Compact Form Factor

Deploy instantly

Deploy instantly, skip all network setup

Stop wasting time on complex installation or network configuration on site. Plug the MG8 gateway into any USB port and let the built-in cellular module connect your data instantly. The 4G cellular link ensures your deployment is private, secure, and always on. Data integrity is further secured with offline storage for up to 30,000 entries.

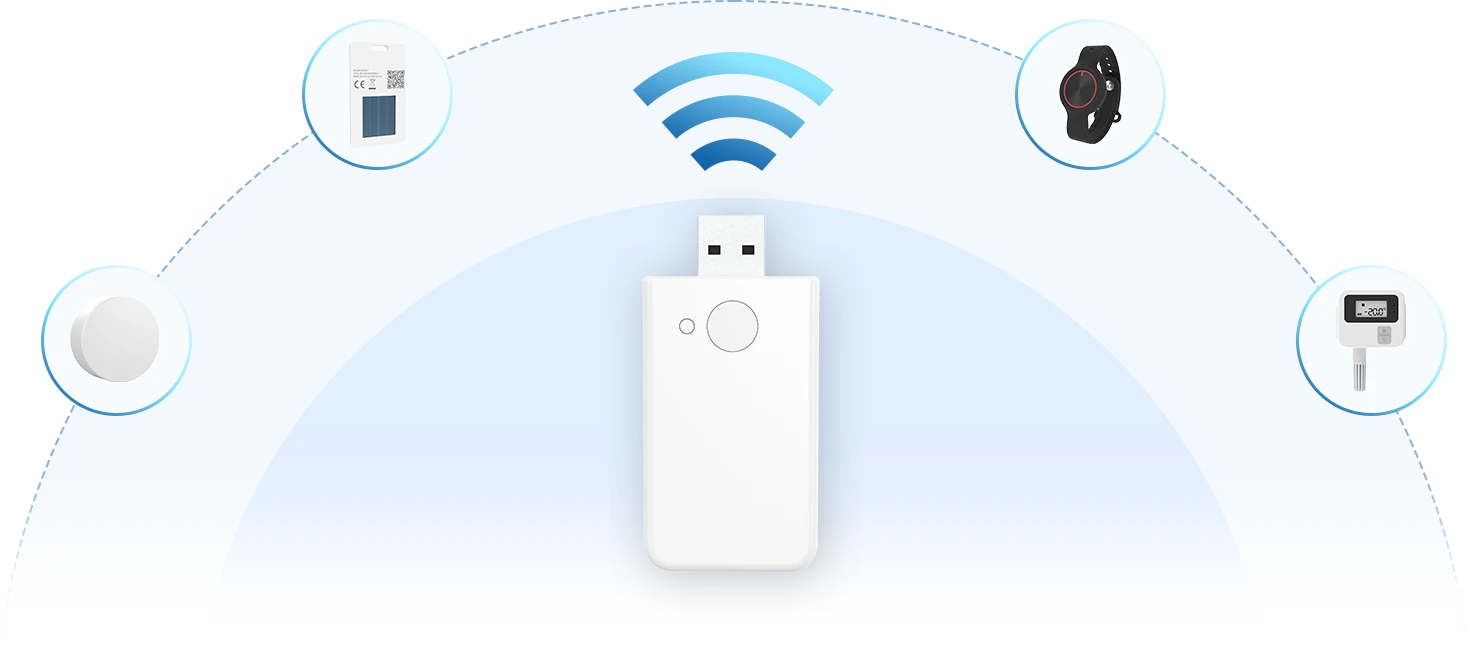

Globally manage all your linked devices

Deploy MG8 gateways using global cellular bands to simplify cross-border projects. The 4G link ensures you can remotely and centrally manage hundreds of connected sensors and trackers worldwide.
Globally manage

Ensure-continuous
scan

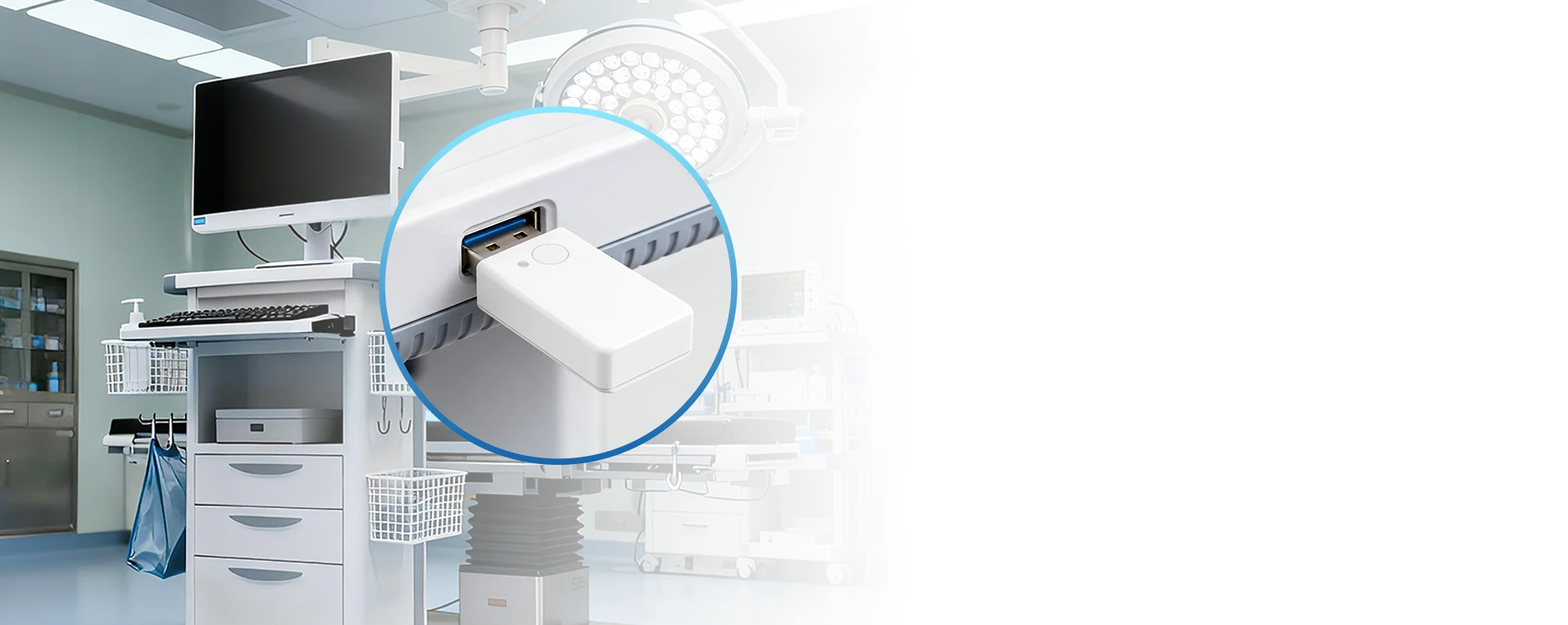

Continuous scanning

Ensure continuous signal reception indoors

The plug-and-play MG8 gateway stays powered via the hospital Workstation on Wheels (WOW) USB port. This allows continuous scanning of critical areas, and the 4G link ensures zero data gaps even when Wi-Fi signal is weak or absent in complex hospital layouts.

SOS

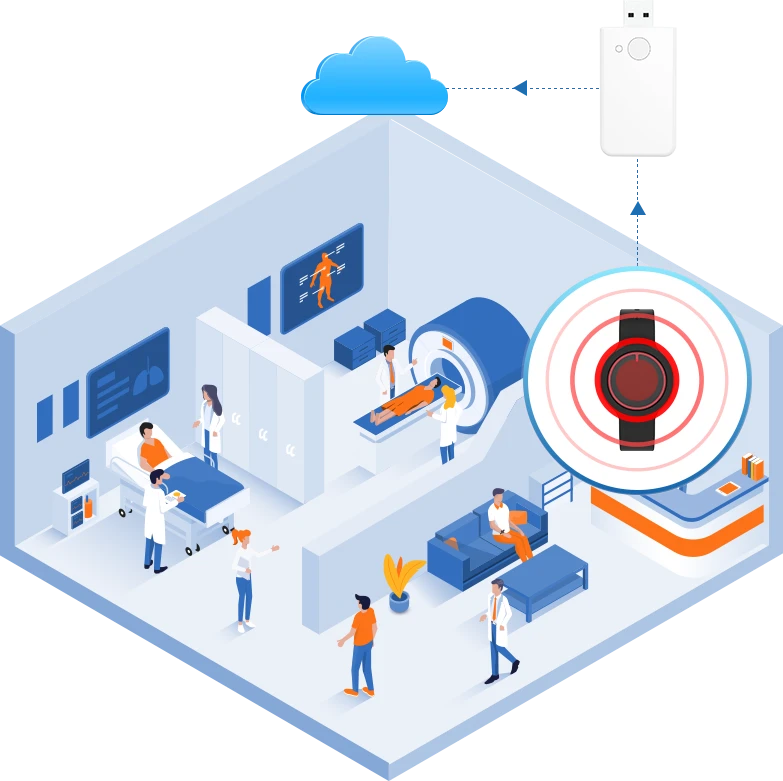

Instant SOS report

Instant SOS reporting for critical events

Prioritize patient safety with immediate emergency response capability. The gateway instantly identifies SOS signals from wearables and ensures essential data reaches the cloud without delay.
*Note: Contact our team for custom development and integration support.
Instant-SOS-reporting

Filter-Bluetooth

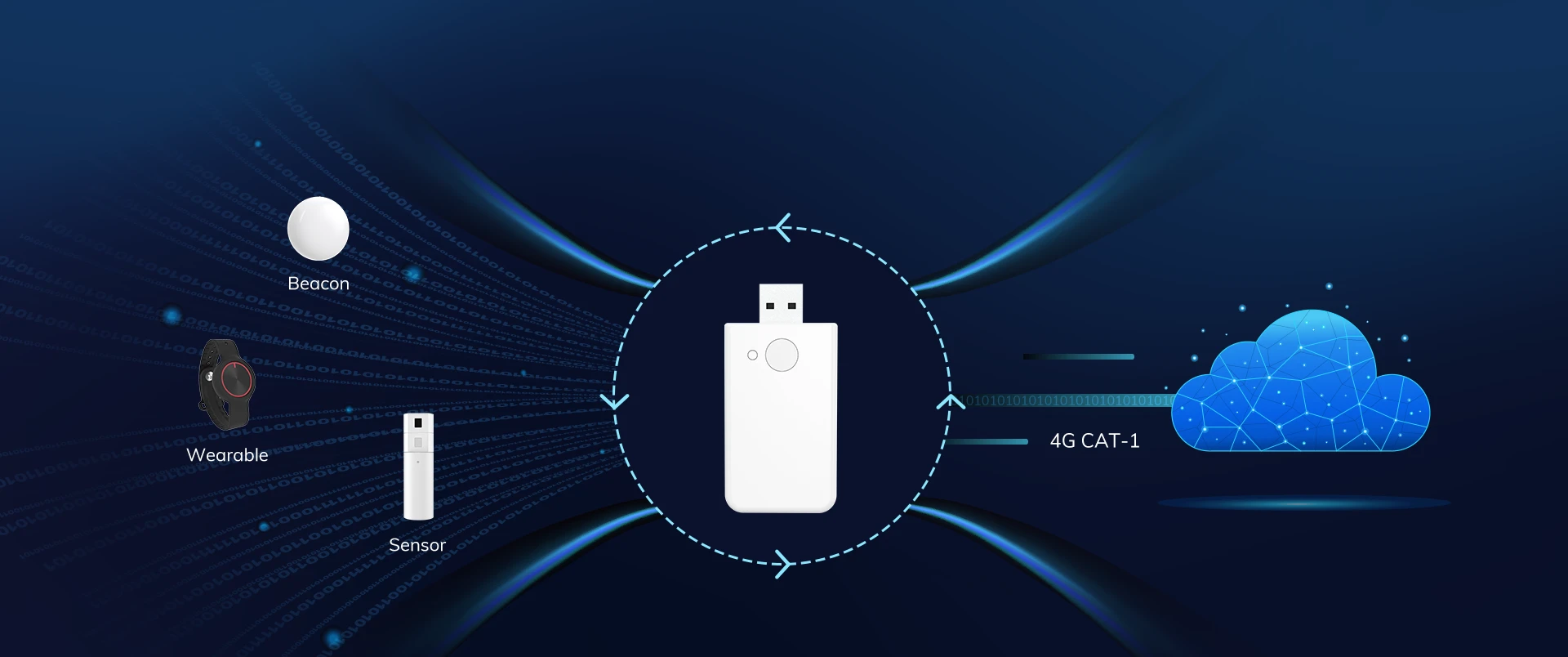

Filter bluetooth data, cut cellular cost

Automatically filter redundant or irrelevant BLE data at the edge. Upload only essential, high-quality information, saving significantly on 4G data transmission and cloud computing expenses.

Flexible power and plug-and-play solutions

Expand your IoT capabilities with our specialized USB and plug gateway ecosystem. Choose the perfect plug-and-play combination to solve complex deployment challenges and guarantee stable, efficient data integration in any environment.
Maximize deployment flexibility

Maximize deployment flexibility

The MPS02 smart plug supplies secure USB power to the MG8, while preserving the standard AC wall outlet for other devices. This solves the persistent problem of occupied power points during fixed installation.
Optimize signal coverage

Optimize signal coverage

Use the MPS02’s dual-directional USB ports to select the best physical installation direction for the MG8 gateway. This guarantees optimal BLE signal coverage in complex or old building layouts.
More plug-and-play gateway solutions

More plug-and-play gateway solutions

Choose PlugHub 1 for secure, ETL-certified stability in complex settings, or the MG3 Mini USB Gateway for maximum efficiency and compact size. Both offer flexible, low-latency data integration via Wi-Fi.
Note: MPS02 plug is set to US standards by default. Contact us for custom specifications and global compatibility.

  • Temporary Events
    Temporary Events
  • Smart Office
    Smart Office
  • Hospital Tracking
    Hospital Tracking
  • Remote Equipment Health
    Remote Equipment Health

  • • Temporary Events

    Quickly deploy visitor management project or sensor monitoring at any event booth. Utilize any available laptop or standard USB adapter for instant, cable-free data collection without relying on venue Wi-Fi access.

  • • Smart Office

    Accelerate your smart office project setup by instantly deploying the MG8 gateway. The plug-and-play USB design allows quick deployment without complicated IT configuration or network access requests.

  • • Hospital Tracking

    Power the gateway via a Mobile Workstation on Wheels USB port to collect data from patient wearables and asset trackers. This ensures reliable, real-time logging crucial for patient safety and equipment optimization.

  • • Remote Equipment Health

    Monitor isolated, high-value rental machinery or appliances with equipment monitoring sensors. The 4G link provides essential remote condition reporting without costly network drops or cabling.

Specifications

dimensions
* For precise measurements, please refer to the physical object.
Material ABS + PC
Power Supply USB powered (DC 5V/2A)
Flash 8MB (offline storage capacity: about 30,000 records)
Work Temperature -20°C ~ 60°C
Configuration TagCloud 3.0, MinewLink App
Data Security SSL / TLS
Bluetooth Version Bluetooth LE 5.0
Bluetooth Bandwidth 1Mbps
Scan Range 80m (open area)
Cellular Connection 4G Cat.1
SIM Card Nano SIM (not included)
