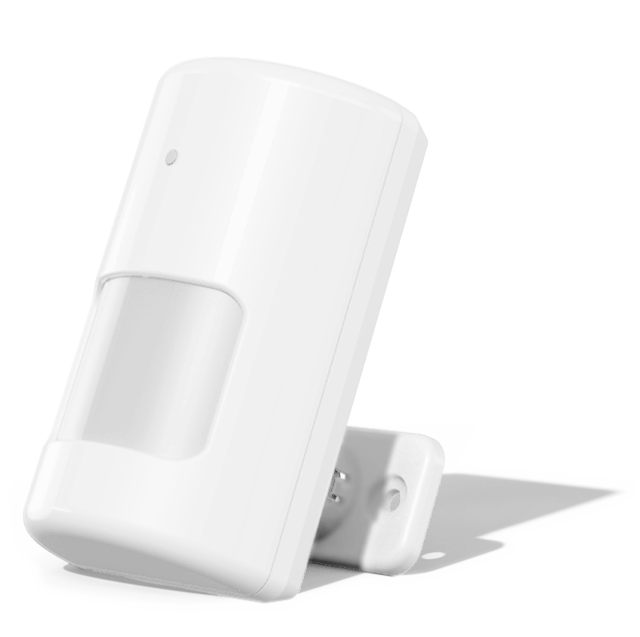

MSP01 Bluetooth PIR Sensor is a passive infrared sensor supporting Bluetooth® LE 5.0 technology, mainly designed for body movement monitoring indoors. It translates the PIR signal from the human body or pets received by the pyroelectric infrared sensor inside to the voltage signal for alerts. Users can either detect indoor environments anytime through their mobile phones or check the data received by the gateway remotely.
- nRF52 Series & Bluetooth® LE 5.0
- 3 Customized Monitoring Periods
- 2 Years Lifetime & Replaceable Battery
- Alarm Time Configurable
- PIR, ACC, T & H Sensors Included
- Angles Adjustable with Rotating Bracket

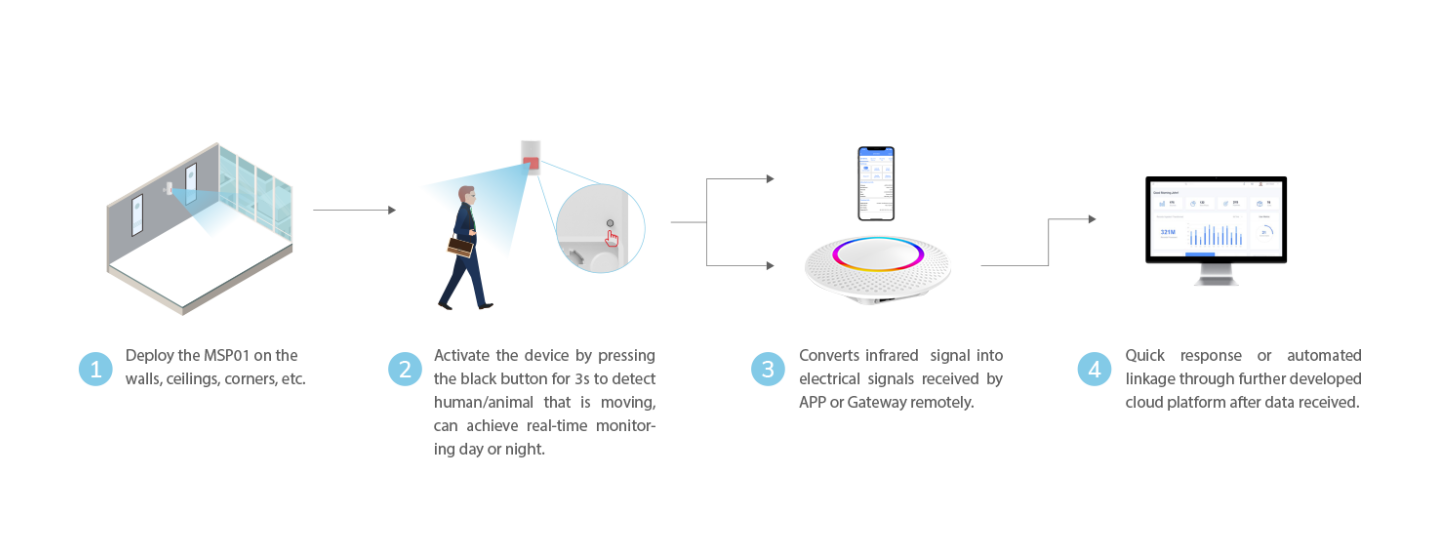

Wie es funktioniert
Easy to install & deploy
It supports flexible installation methods on the wall or ceiling. The detection distance is 10 meters, and the detection angle range can be adjusted in multi-directional rotation within 90°.
Customized configuration & personalized design
Users can customize parameters such as infrared detection time period and alarm time BeaconSET Plus. It supports OTA upgrade and customization services.
Equipment linkage & remote monitoring
Mobile phone terminals can be used for detection. Remote monitoring can also be realized in combination with the gateway.
Detect and alarm
The built-in PIR can sense the infrared signal of the human body and convert it into a voltage signal to trigger detection and alarm.
Multi-sensor for wide scenarios
Built-in PIR, ACC, and temp & humidity sensors. Detect the motion state of the item, and detect the surrounding temp & humidity.
Spezifikationen
| Farbe | Weiß |
| Betriebstemperatur | -15~50℃ |
| Nettogewicht | 96g+10g (Battery & Accessories included) |
| Material | ABS |
| Geräte-Firmware | iBeacon & Eddystone(Standard) Masche(Optional) Tamper-proof OTA(Fakultativ) |
| Chip | nRF52-Serie |
| Batterie | 2 pcs AA batteries, 2900mAh capacity in total |
| Sensoren | PIR, Accelerometer, Temperature & Humidity Sensors （Included） |
